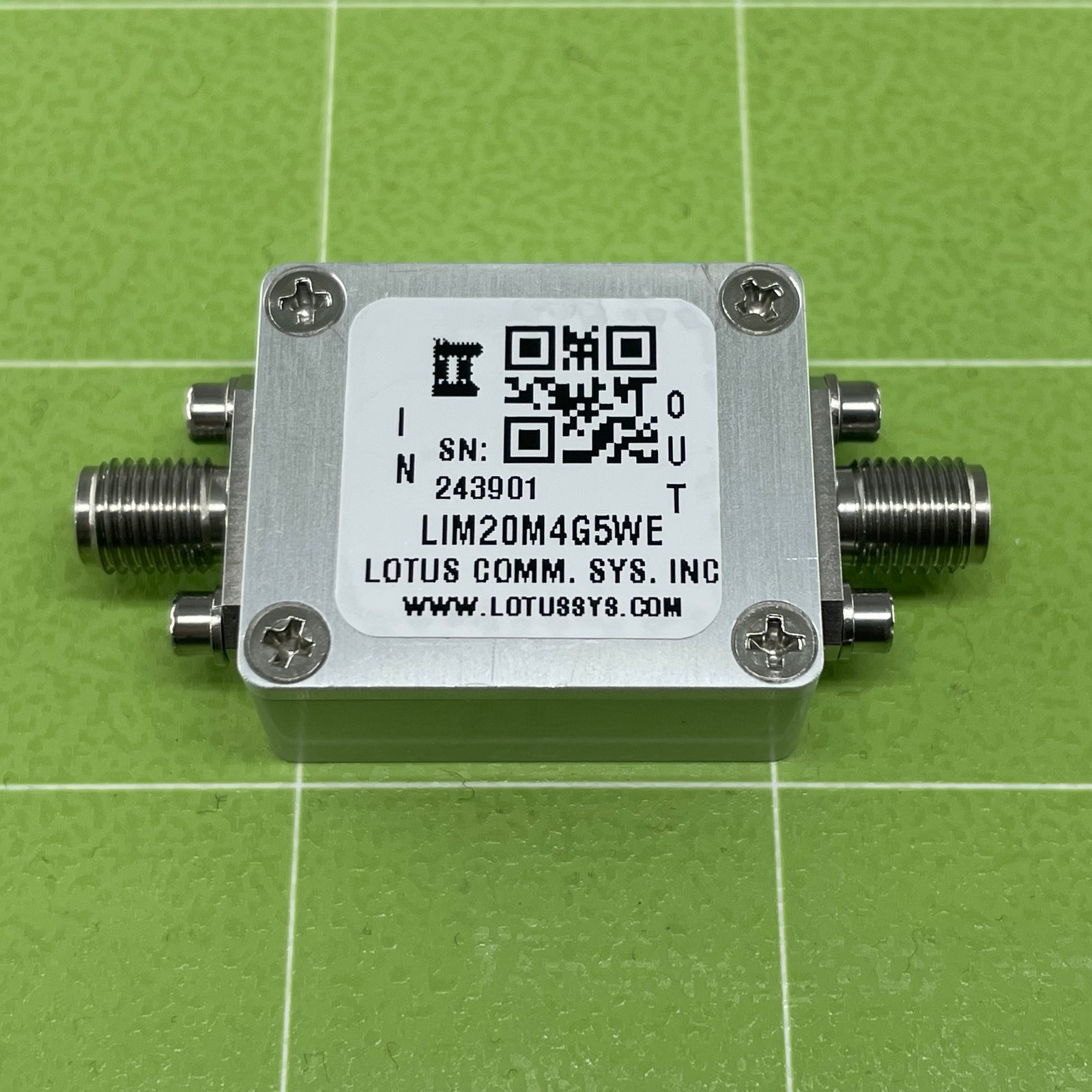

Limiter 20 MHz - 4000 MHz (+10 to 37 dBm) 5 Watts
$ 166.00 USD - $ 256.00 USD
PN#: LIM20M4G5W is a RF limiter in a small 1.125”x0.9375”x0.48” shielded RF enclosure (PN: 6ED2W6H41SP2W). The limiter protects against ESD and input power surges over a frequency range 20 to 4000 MHz. The limiter provides protection for LNA's in tough environments.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: 20 MHz to 4000 MHz
- Low Insertion Loss: 0.36 dB typ.
- Fast recovery time, 33 nsec typ.
- Excellent VSWR 1.2:1 typ.
- Low output power: 12 dBm typ.
- Maximum RF Input: 5 Watts
- Stainless Steel SMA Female Connector
- ROHS Compliant
- EMI Shield & Weatherproof Option Available
(PN#: LIM20M4G5WE)
Applications
- Stabilize RF outputs
- Reduce amplitude variations
- Protect LNA from ESD/power damage
Resources (PDF Datasheet)
LIM20M4G5W Datasheet
