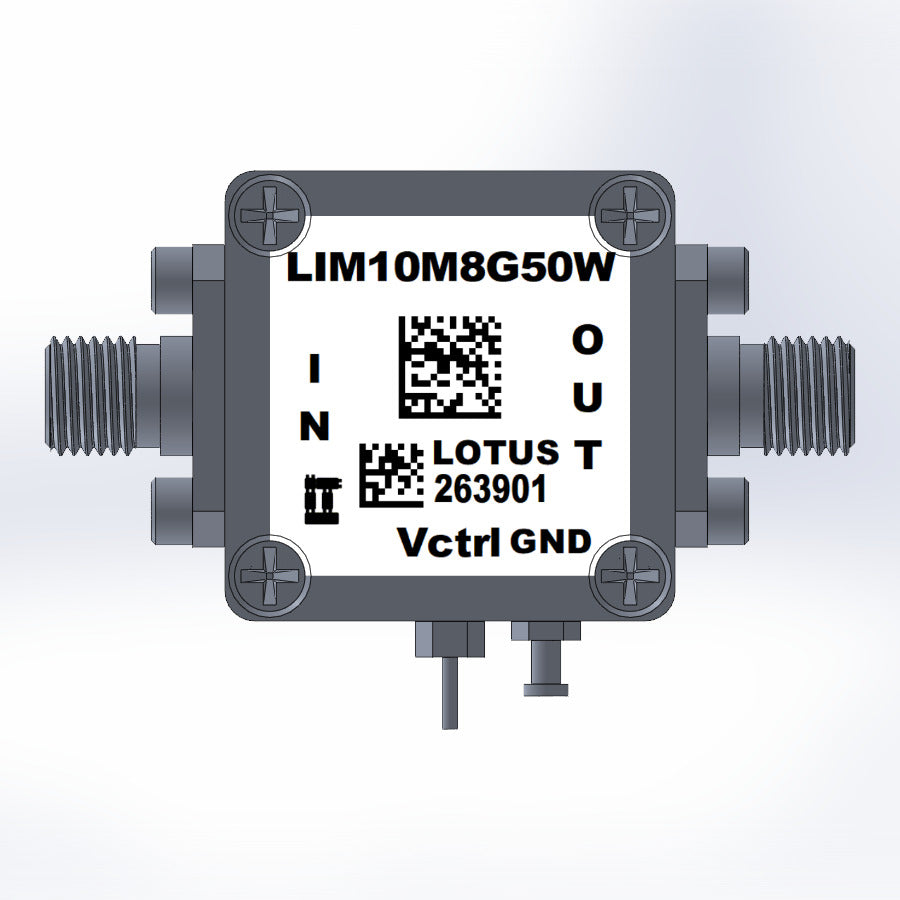

Limiter 10MHz-8GHz 50 Watts

Part Number: LIM10M8G50W is RF limiter. It is ideal for applications like Cellular,  PCS, W-CDMA, ISM, LTE, SDR and Ham Radio.

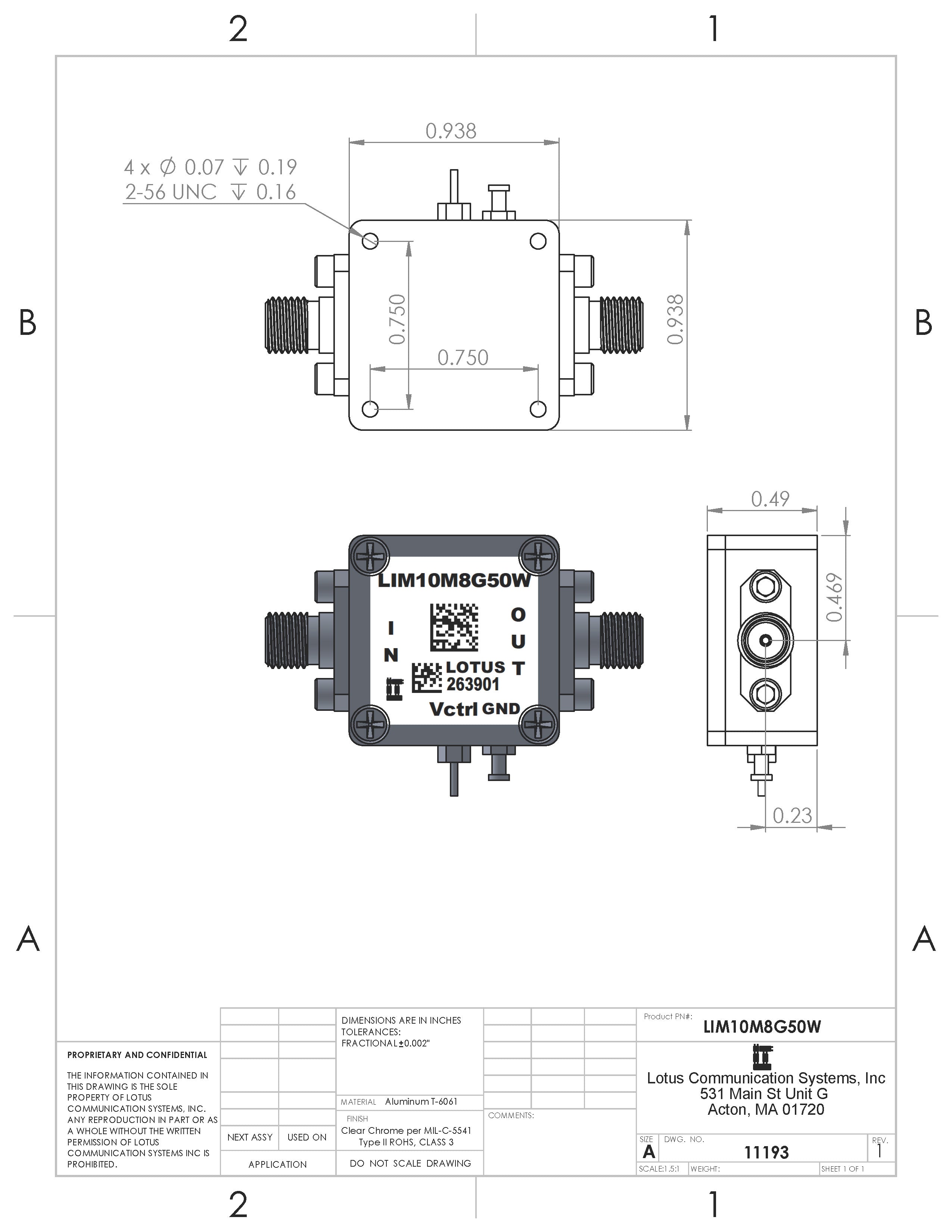

Enclosure is using RF Design Kit 6UDD4W6H41SMAA2 with dimension 15/16"x15/16x0.48". SKU#: AK20-005E.

The limiter protects against ESD and input power surges over a frequency range 10 to 8000 MHz. It is capable of withstanding up to 50 Watts incident power levels and allows < 17dBm flat leakage.  The limiter provides protection for RF/Microwave equipment in hostile environment.

It uses pSemi PE45361 Chip.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
