Limiter 9 kHz - 6 GHz (Adjustable threshold from +25 dBm to +35 dBm)

3 items left

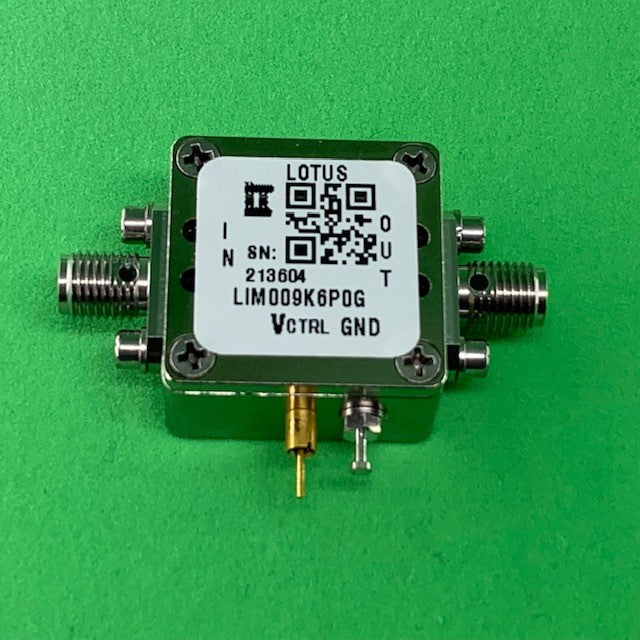

LIM009K0P6G RF power limiter. It is ideal for applications like Cellular,  PCS, W-CDMA, ISM, LTE, SDR and Ham Radio.

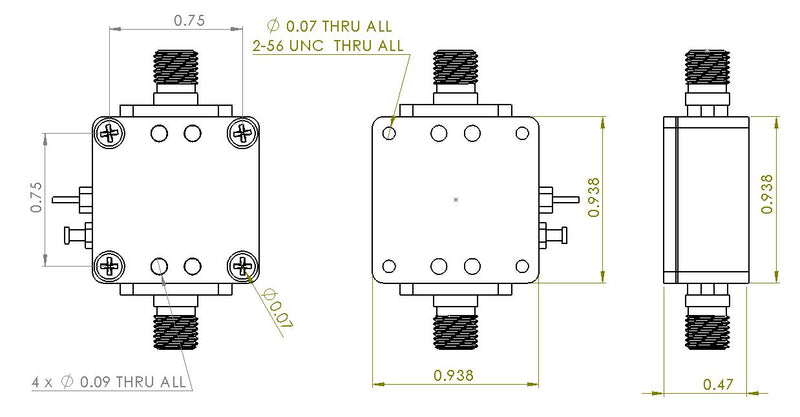

Enclosure is using RF Design Kit 6UDD6W6S1A2 with dimension 0.9375"x0.9375x0.59". SKU#: AK20_004K.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Frequency Range: 9 kHz to 6000MHz
  • Low Power Insertion Loss <1.0 dB
  • Fast Response/Recovery Time: 1ns
  • High Quality Stainless Steel SMA Female Connector (DC-24GHz)
  • Use Peregrine PN: PE45450
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Stabilize RF outputs
  • Reduce amplitude variations
  • Protect LNA from ESD/power damage
  • General Purpose Wireless

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LIM009K0P6G Datasheet
