High Pass Filter (LTCC Construction) HPF9700M Pass Band 9.7-17GHz
$ 66.00 USD

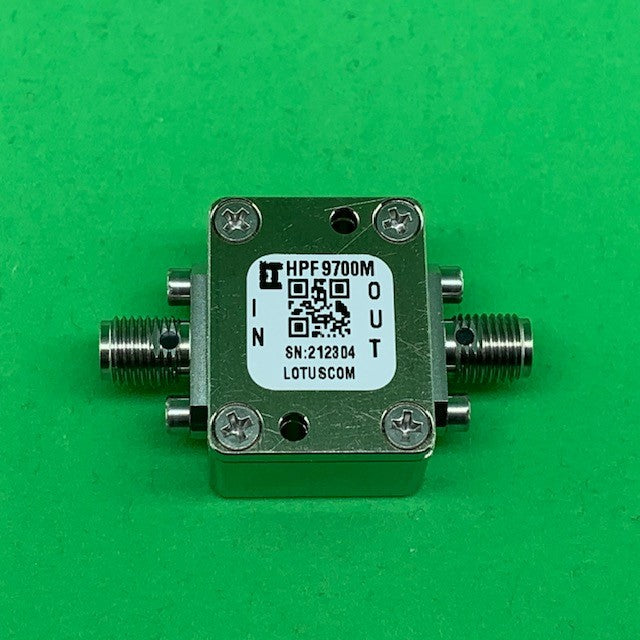

Part Number: HPF9700M -- High Pass Filter (LTCC Construction) Pass Band 9,7G-16.98 GHz.

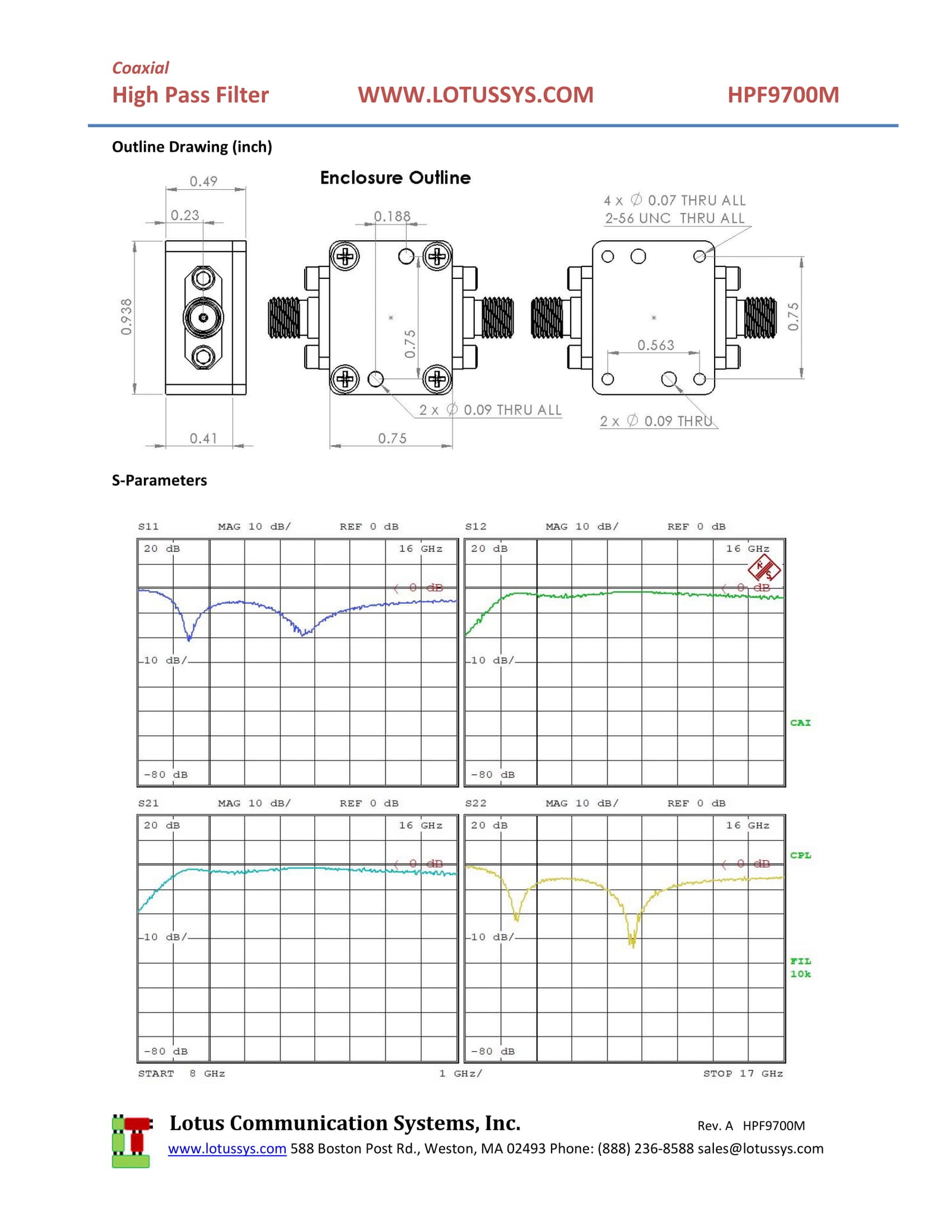

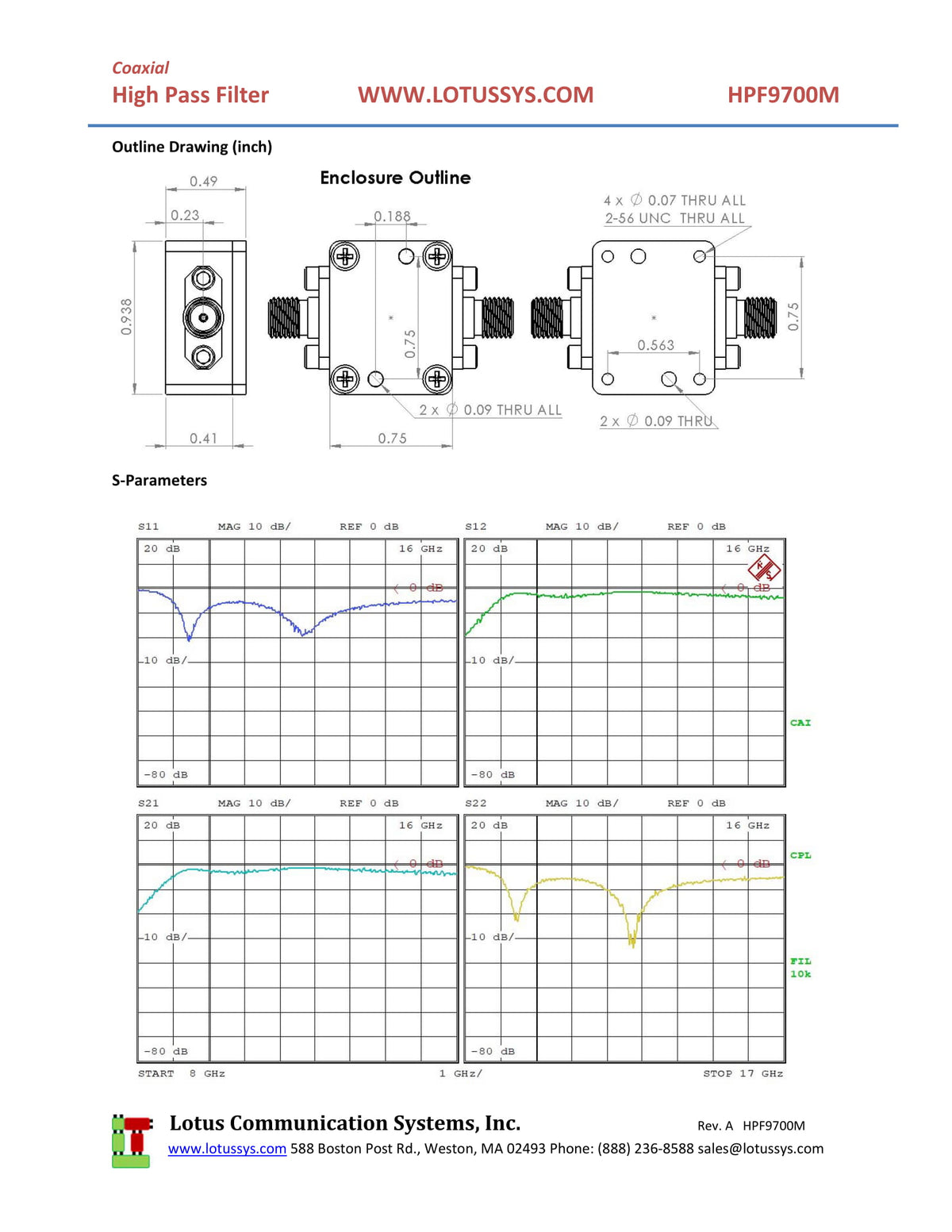

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (8 GHz to 17 GHz) is shown in third picture.
Features
- Operational Temperature: -55 ~ 100℃
- Temperature Stable
- 3dB Cut Off Frequency: 9070 MHz
- RF Power Input: 7W max. at 25℃
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources

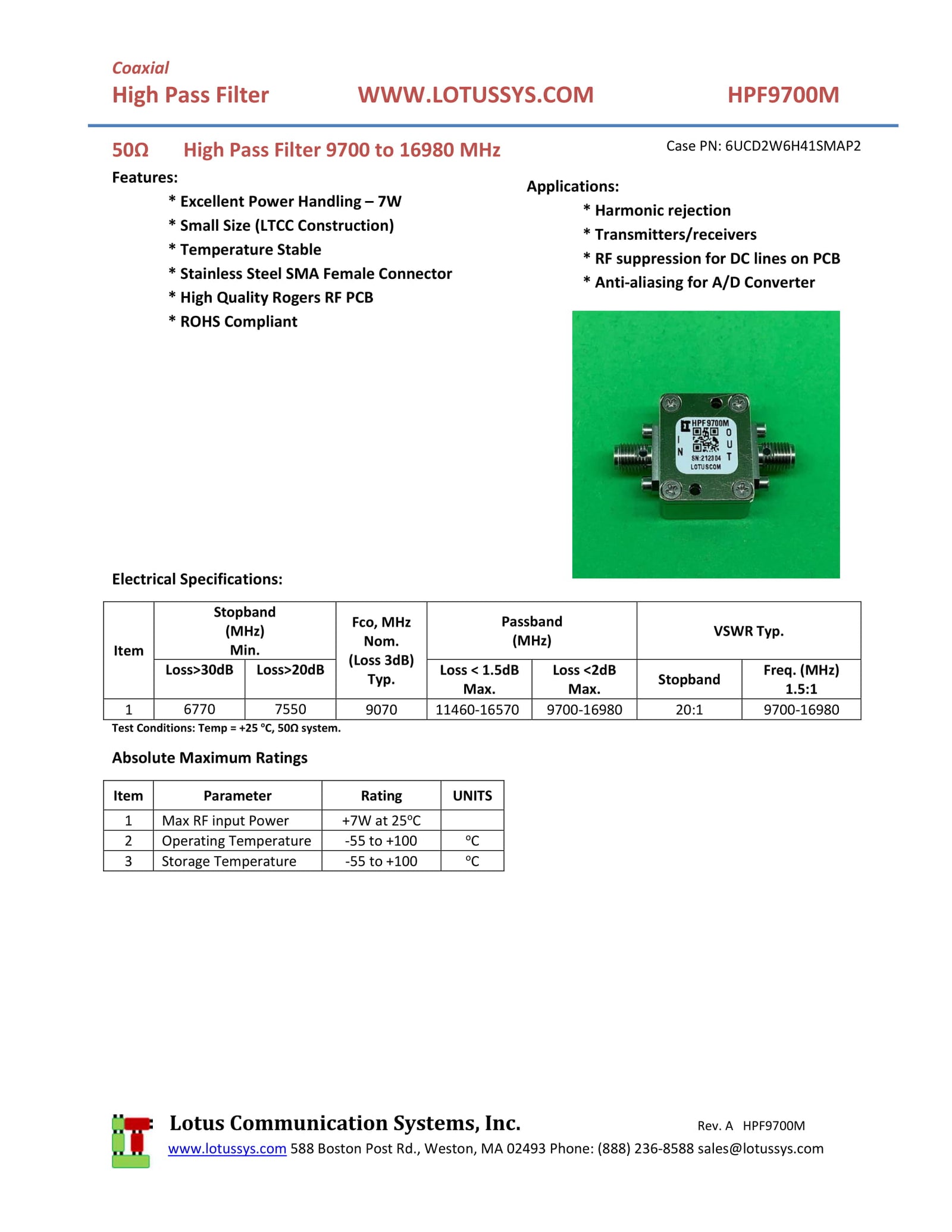

HPF9700M Datasheet
