$ 56.00 USD

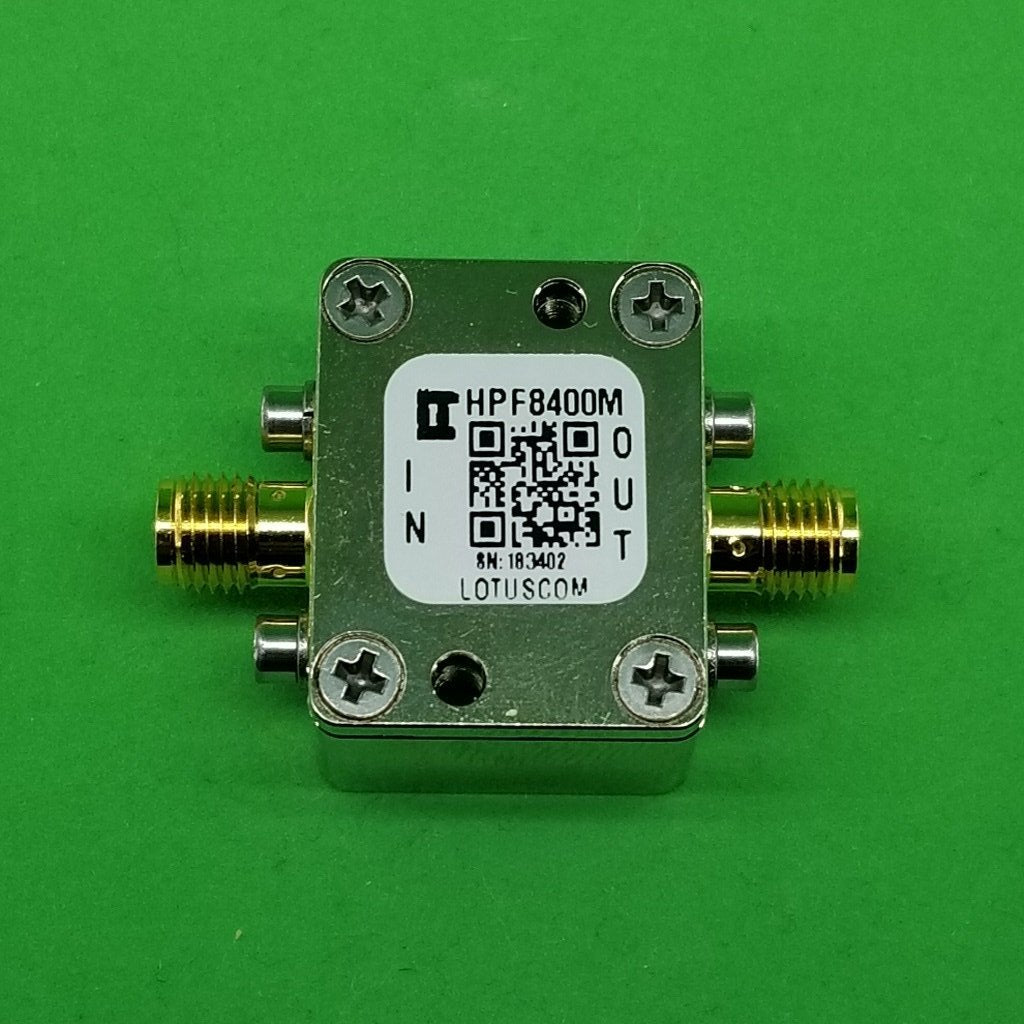

Part Number: HPF8400M -- High Pass Filter (LTCC Construction) Pass Band 9G-13 GHz. SKU#: AK28-001N.

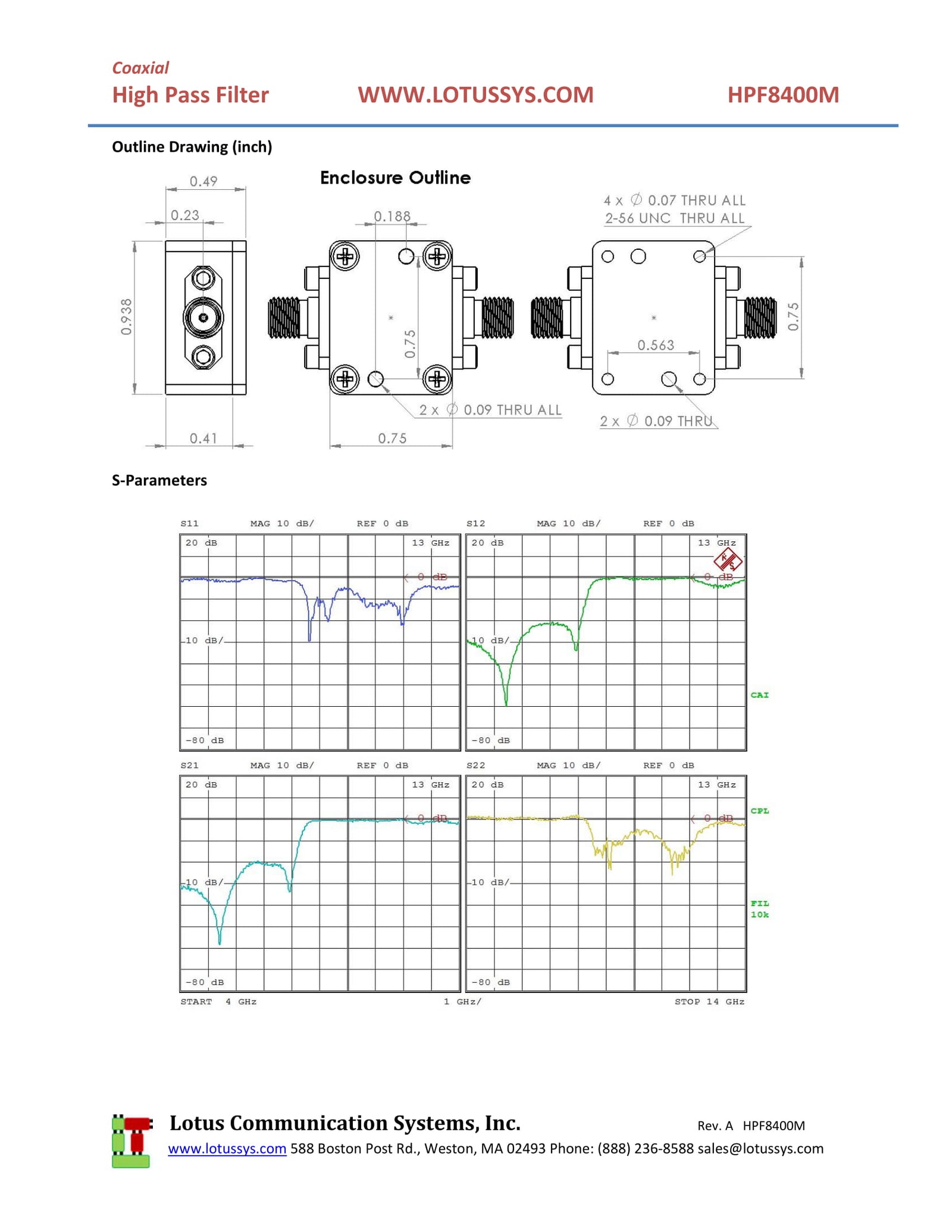

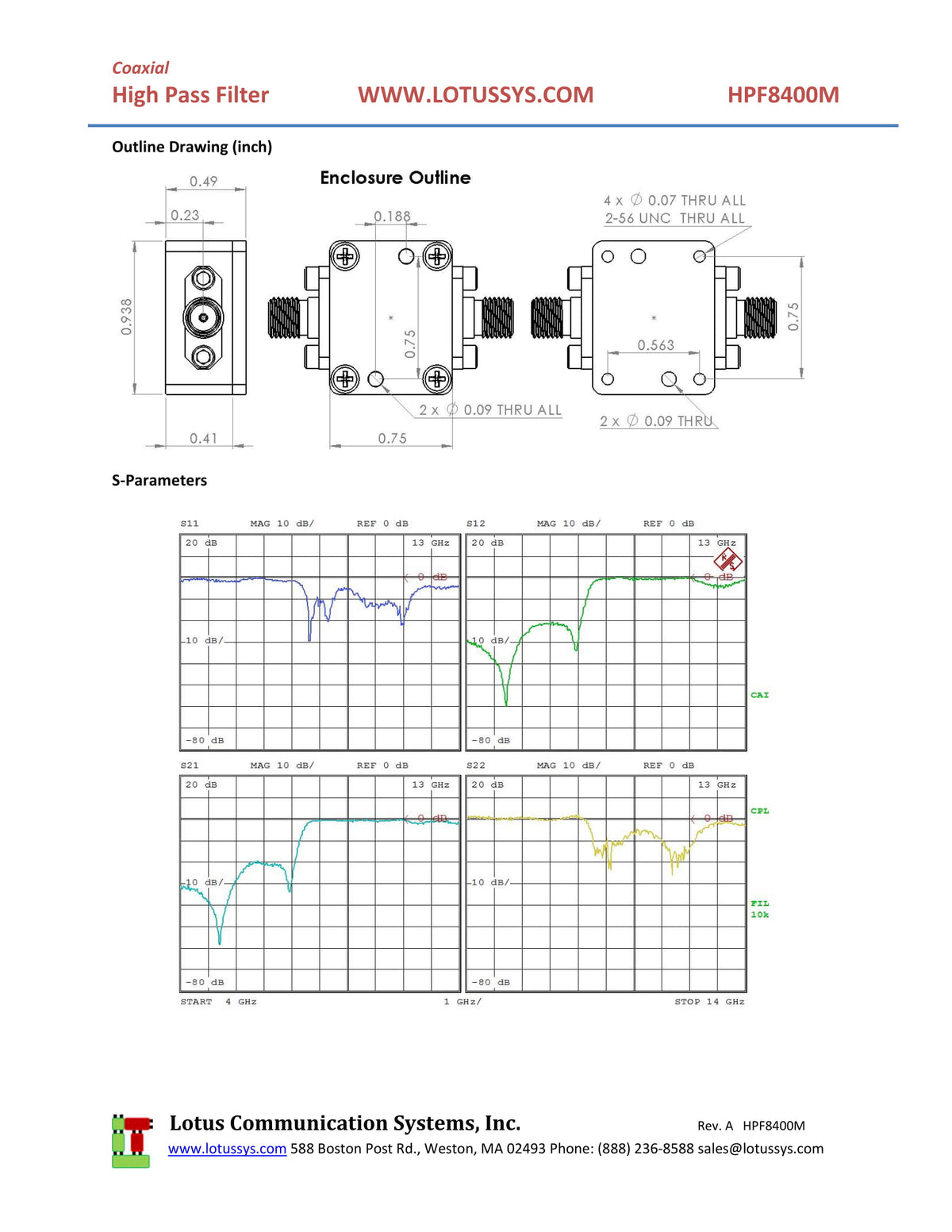

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (4 GHz to 13 GHz) is shown in third picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: High Pass Filter

Features

Operational Temperature: -55 ~ 100℃
Temperature Stable
3dB Cut Off Frequency: 8400 MHz
RF Power Input: 7W max. at 25℃
Insertion Loss in Pass Band: (1.5dB Max)
High Quality SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

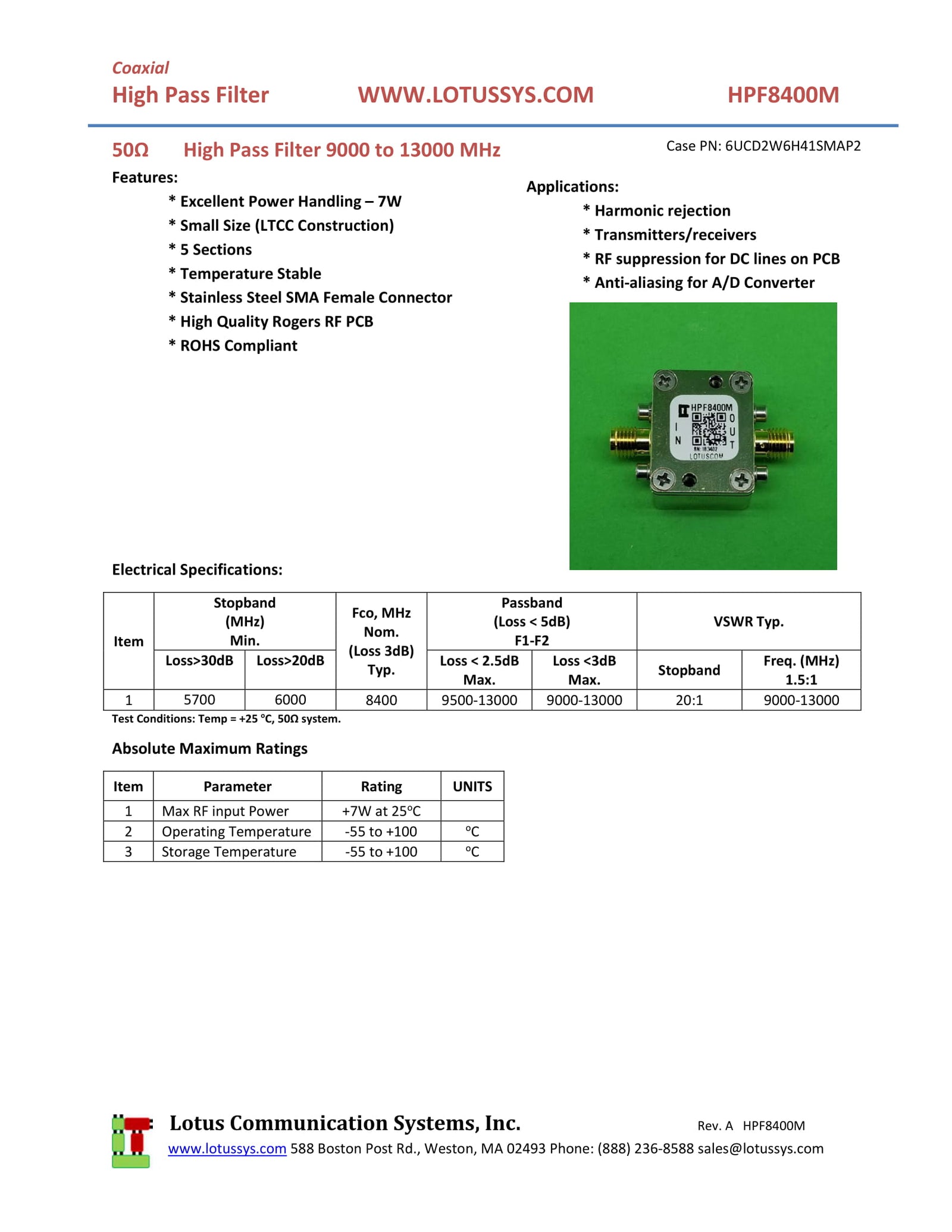

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

HPF8400M Datasheet
