High Pass Filter (LTCC Construction) HPF5500M Pass Band 6G - 11.5GHz

High Pass Filter (LTCC Construction) HPF5500M Pass Band 6G - 11.5GHz

High Pass Filter (LTCC Construction) HPF5500M Pass Band 6G - 11.5GHz

High Pass Filter (LTCC Construction) HPF5500M Pass Band 6G - 11.5GHz

High Pass Filter (LTCC Construction) HPF5500M Pass Band 6G - 11.5GHz

$ 88.95 USD

Part Number: HPF5500M -- High Pass Filter (LTCC Construction) Pass Band 6G-11.5 GHz. SKU#: AK28_001N.

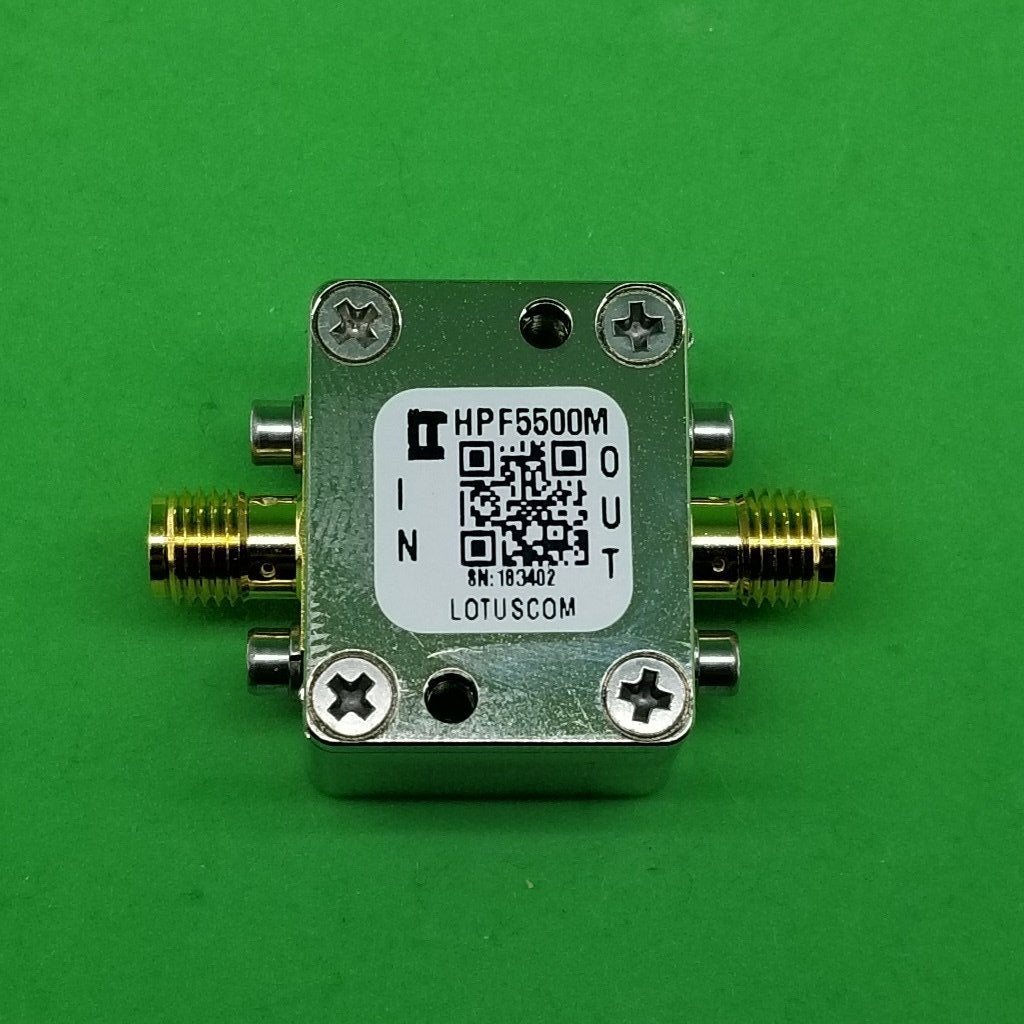

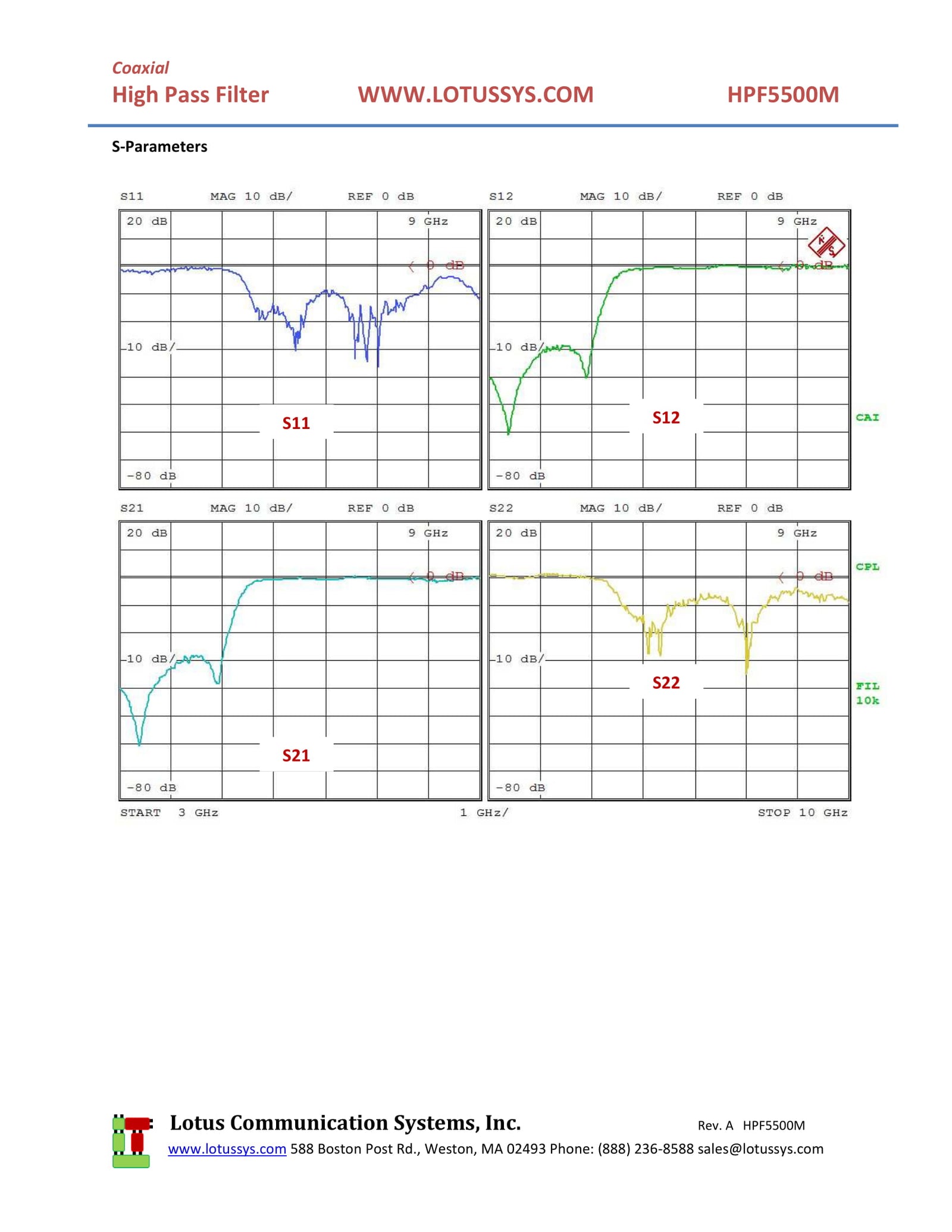

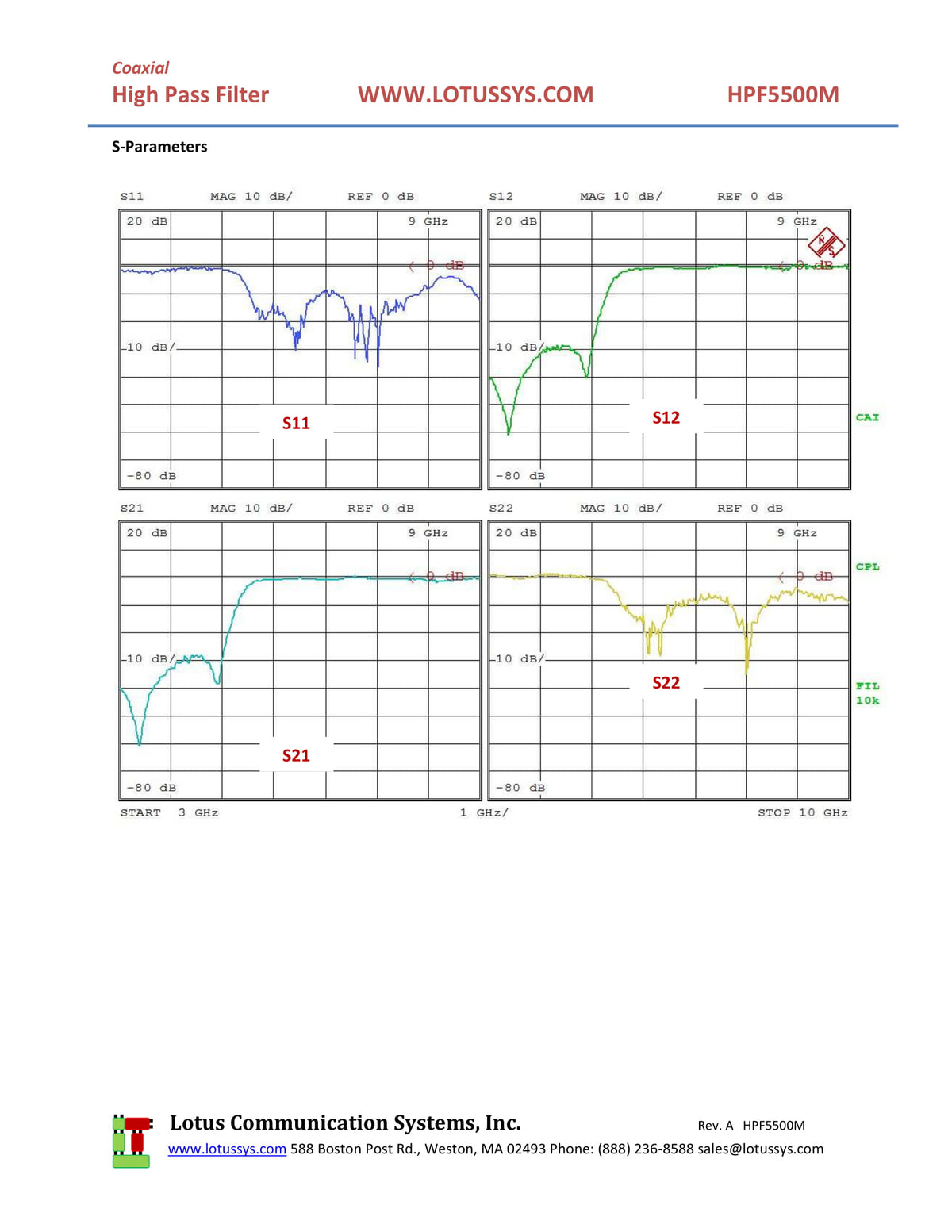

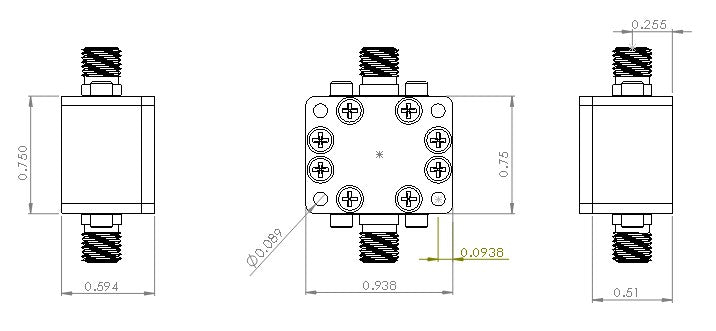

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (3 GHz to 10 GHz) is shown in third picture.

Made in USA.

Collections: High Pass Filter

Features

Operational Temperature: -55 ~ 100℃
Temperature Stable
3dB Cut Off Frequency: 5500 MHz
RF Power Input: 7W max. at 25℃
Insertion Loss in Pass Band: (1.5dB Max)
High Quality SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

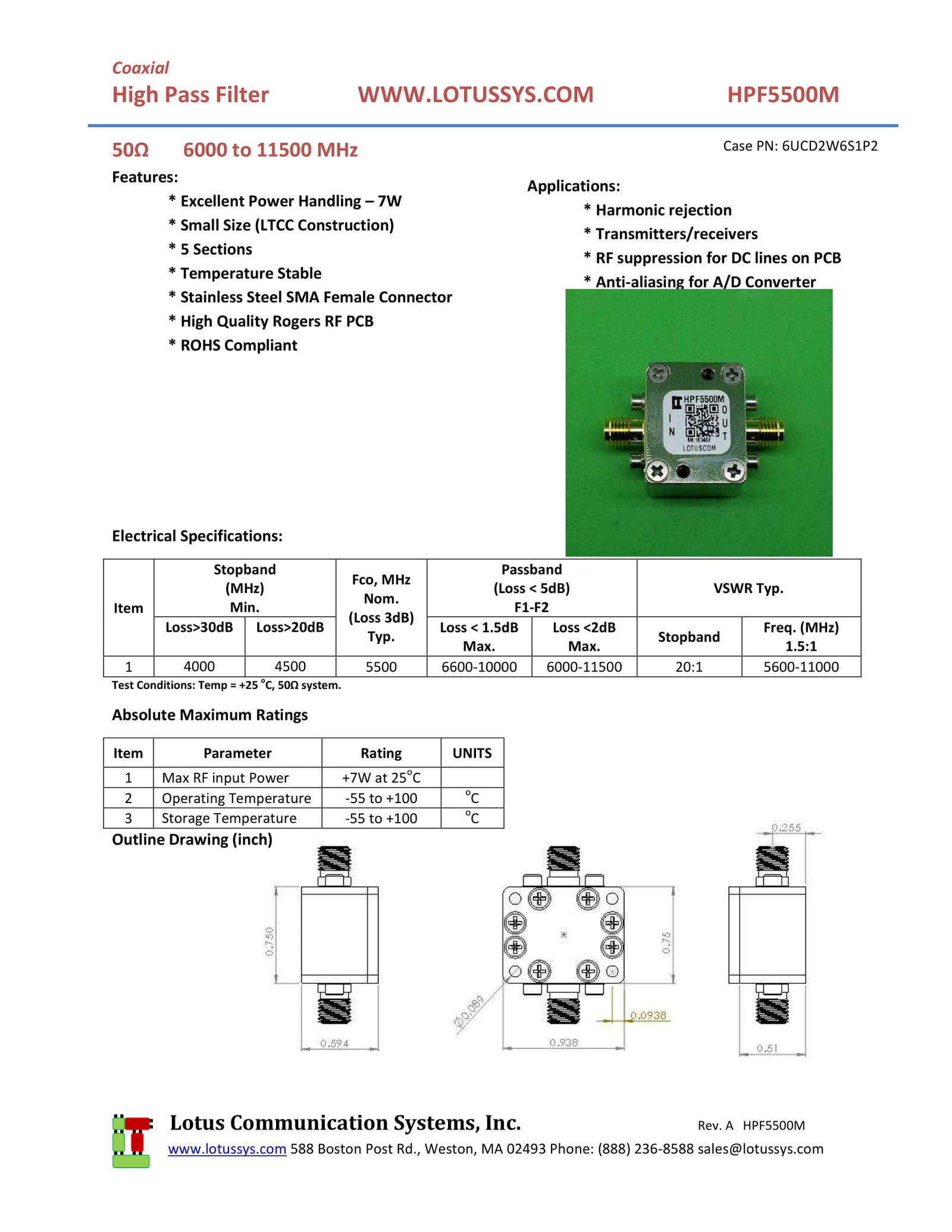

HPF5500M Datasheet
