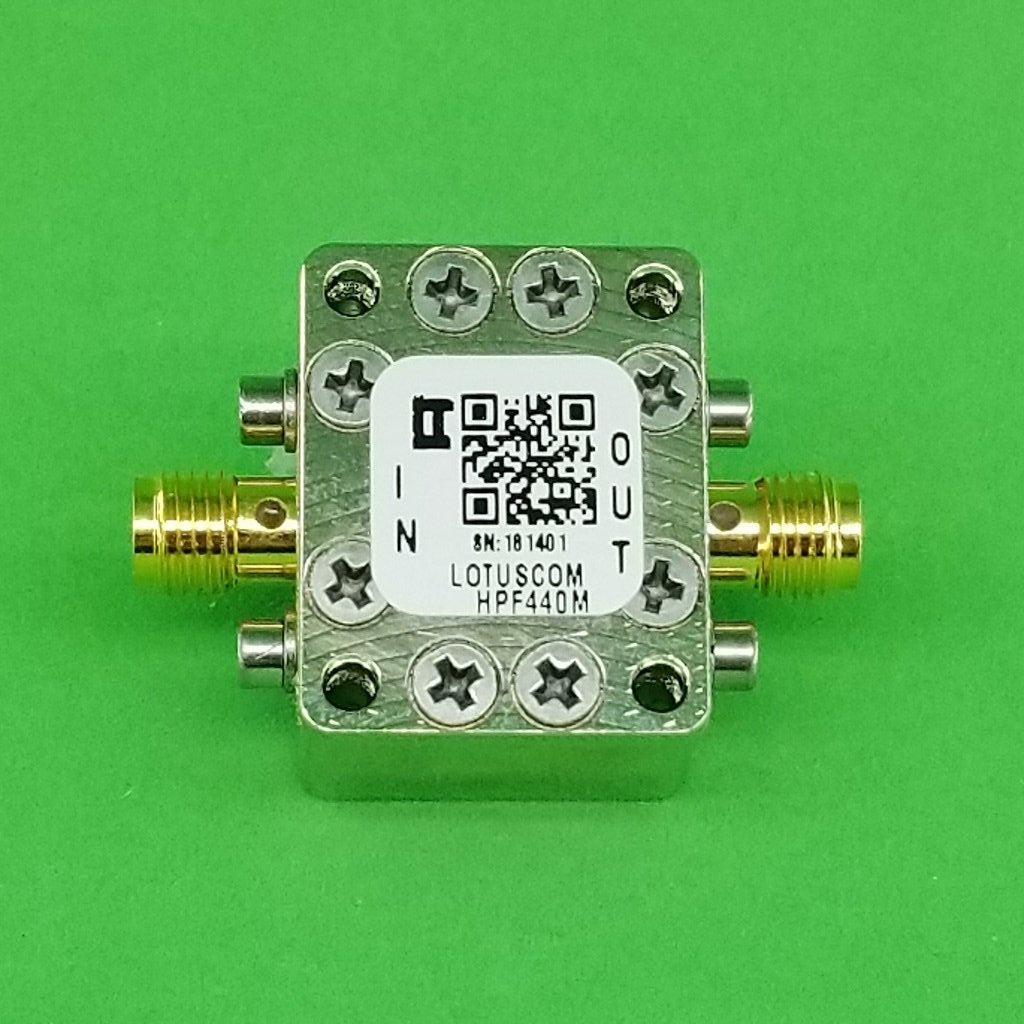

High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz
$ 98.00 USD
Part Number: HPF440M -- High Pass Filter (LTCC Construction) Pass Band 500M-2500MHz.

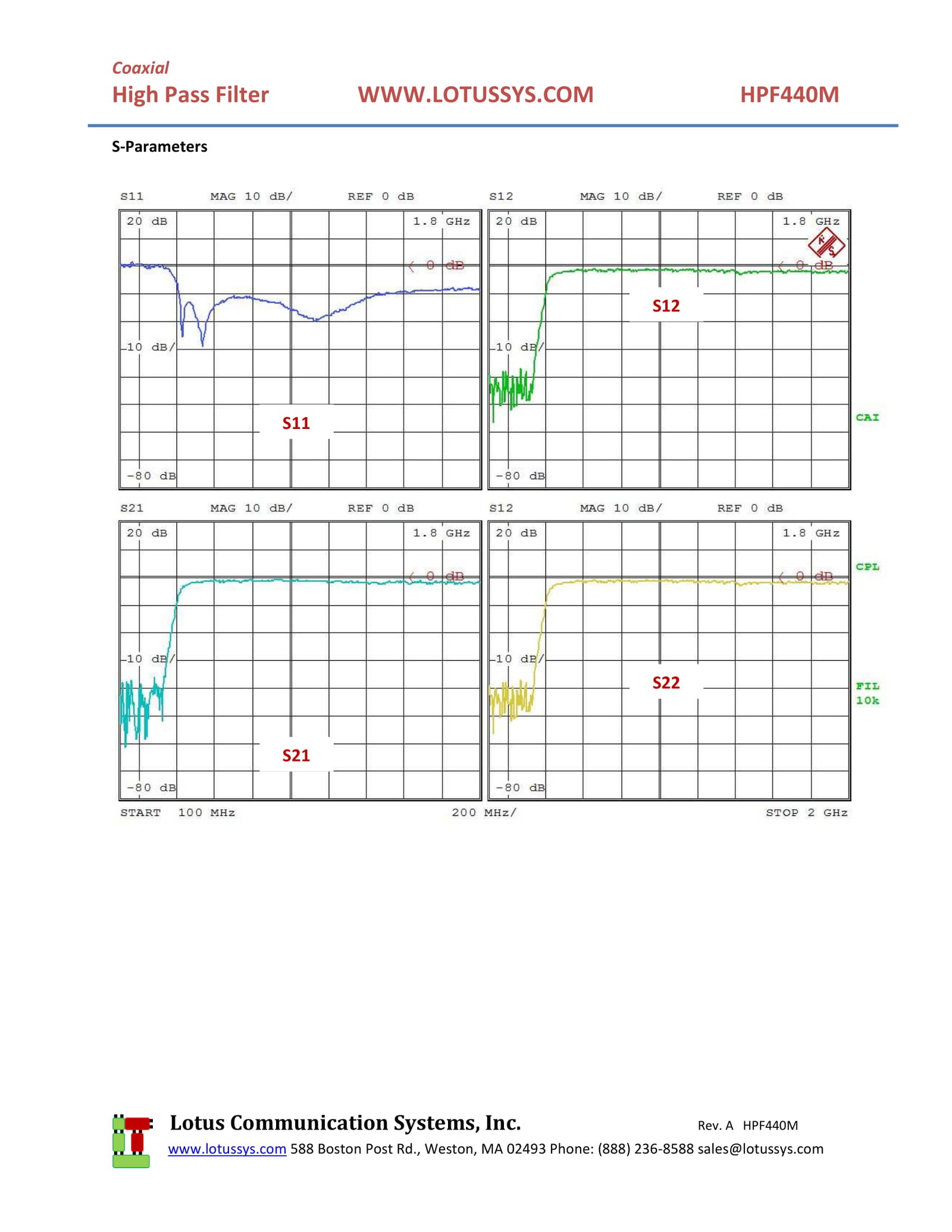

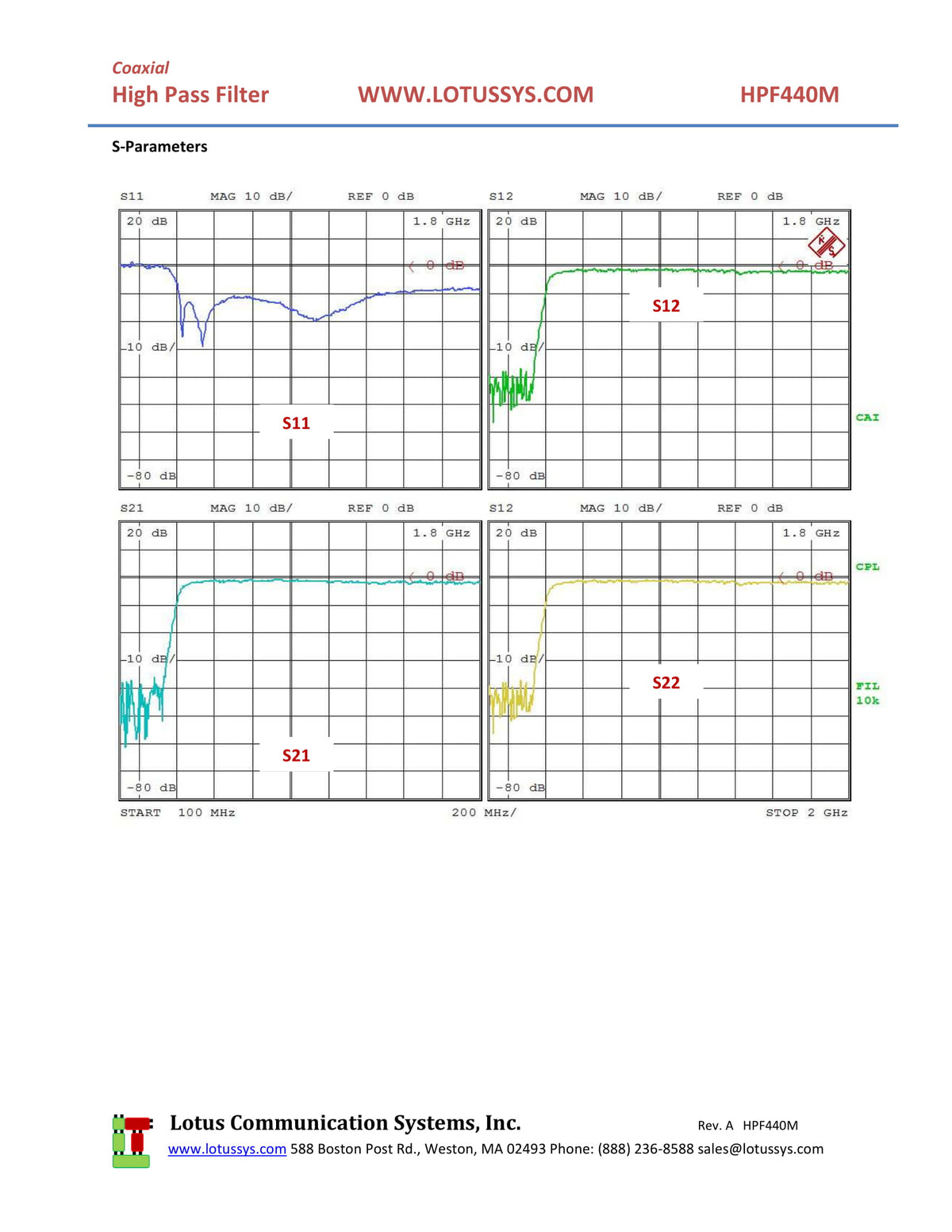

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (100 MHz to 2 GHz) is shown in third picture.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Operational Temperature: -55 ~ 100℃
- Temperature Stable
- 3dB Cut Off Frequency: 440 MHz
- RF Power Input: 7W max. at 25℃
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation

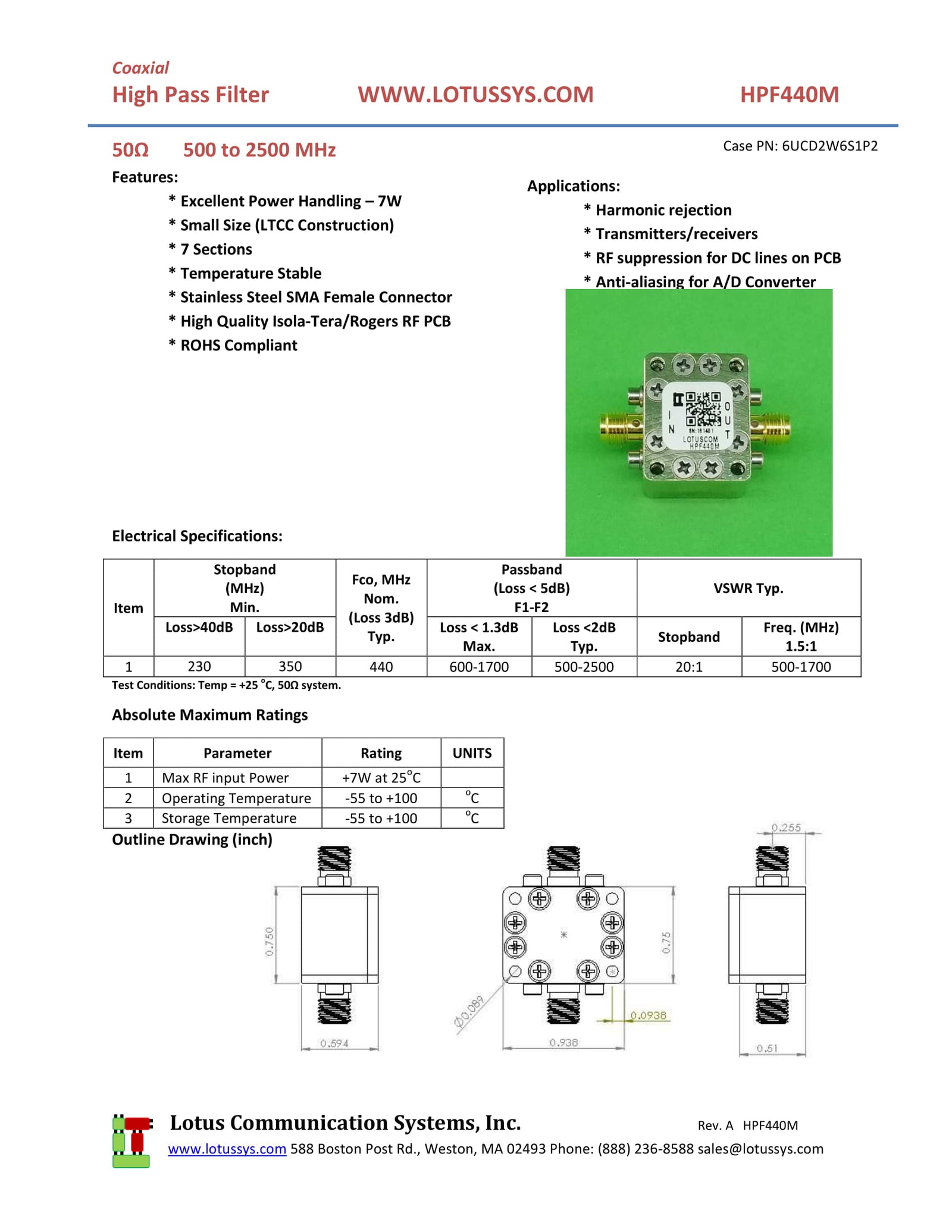

Resources (PDF Datasheet)
HPF440M Datasheet
