  • GNSS/GPS/GLONASS/BeiDou Band Pass Filter 1100~1700MHz

    Part Number: BPF1P1G1P7G is GNSS/GPS/GLONASS/BeiDou Band Pass Filter with pass band from 1125~1675MHz.  It has <2.0dB Insertion loss in the pass band.

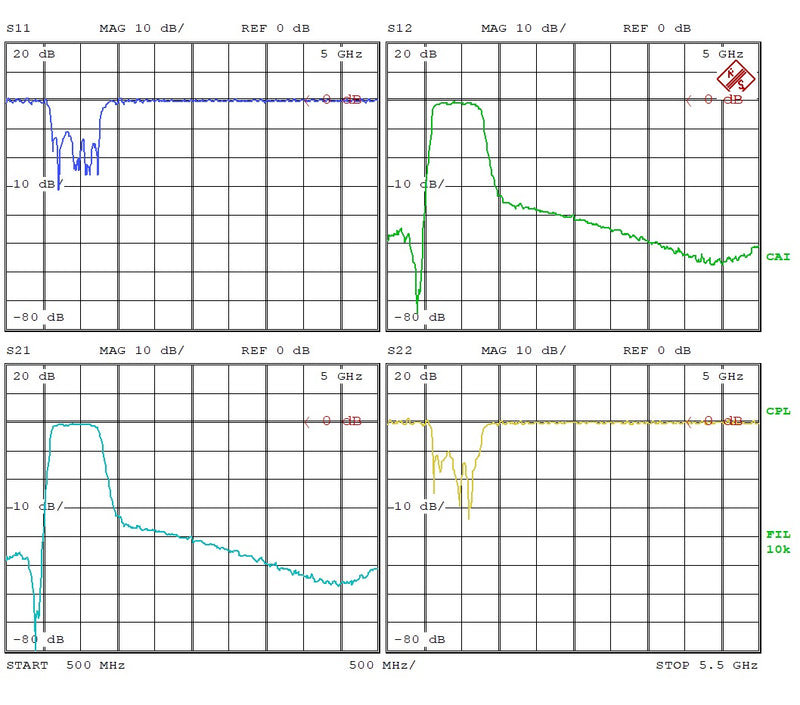

    Enclosure is using RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of the Part measured on VNA is shown. SKU#: AK20-020C.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    Features

    • Operational Temperature: -45 ~ 85C
    • Temperature Stable
    • Frequency Range: 1125~1675MHz
    • Insertion Loss < 2.0dB in passband
    • High Quality Stainless Steel SMA Female Connector

    Applications

    • Rejection out band signals -- LTE, UHF, other ISM band
    • Harmonic Rejection
    • Navigation Transmitters / Receivers
    • Test Instrumentation


    Resources (PDF Datasheet)
