  • Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA +5.5~12V

    Part Number: GBA7G15GR is a HBT Gain Block MMIC Amplifier covering 7 GHz to 15 GHz in a small 15/16”x15/16”x0.48” shielded RF enclosure.  This amplifier can be used as a cascadable IF or RF gain stage in 50 Ohm applications.  It delivers 15 dB gain, and +15dBm output P1dB with only 4 dB noise figure. The Gain Block can be biased from a single supply +5.5~12V.  SKU#: AK20-016F.

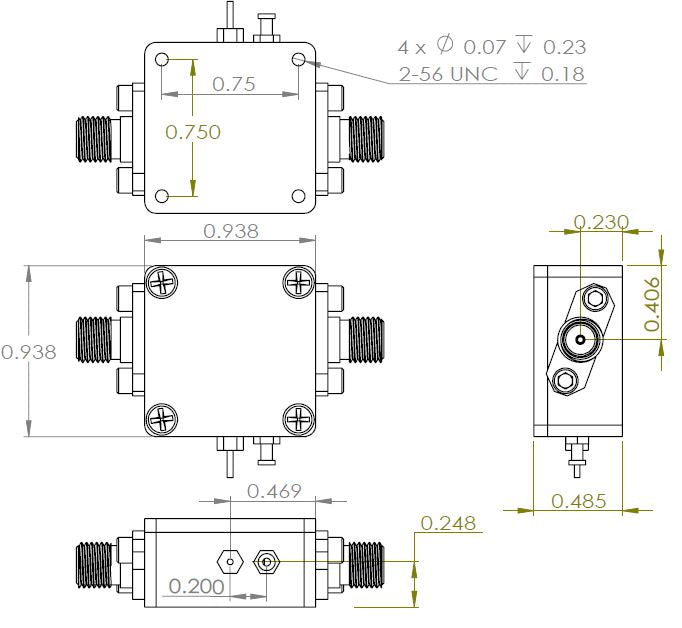

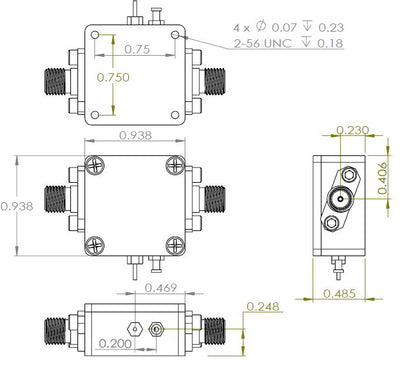

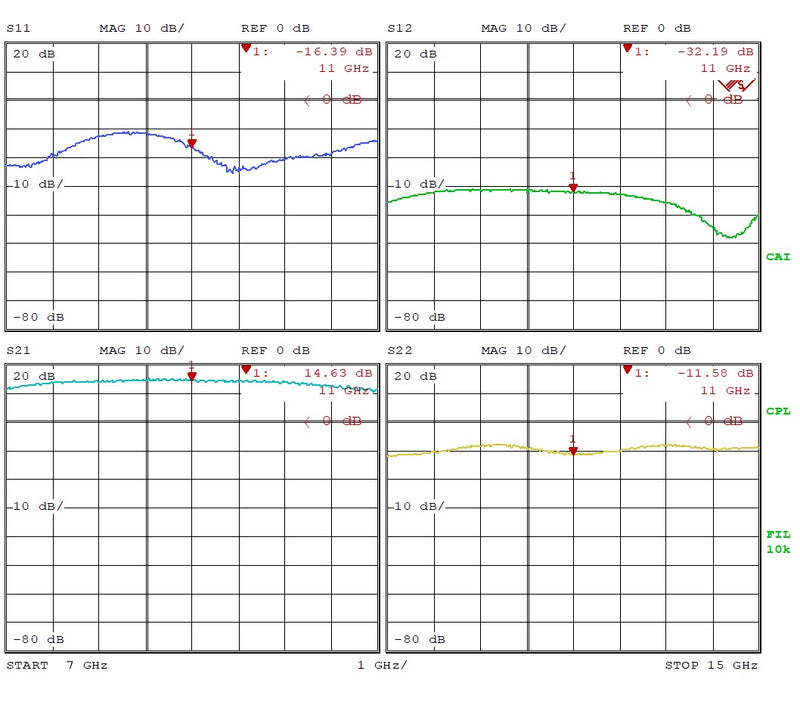

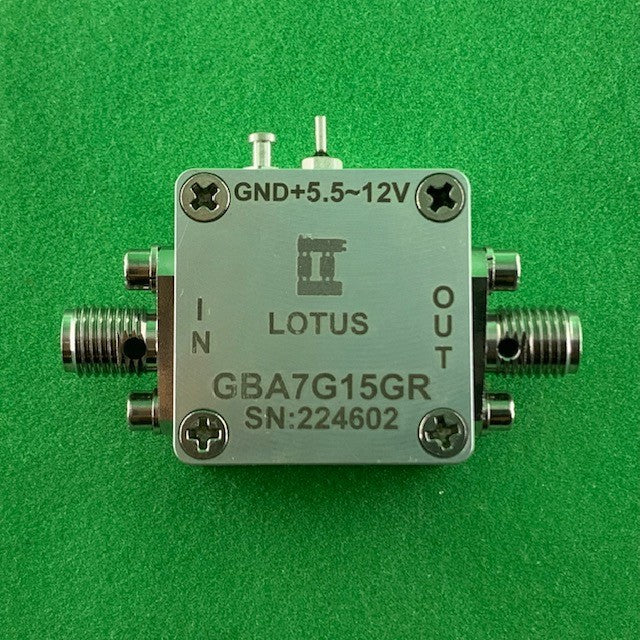

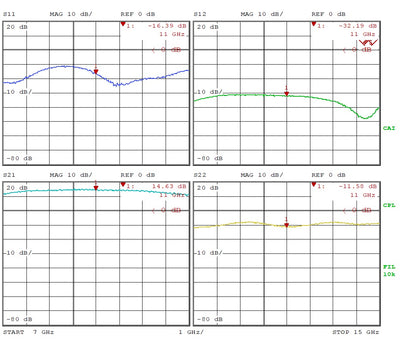

    Listed pictures include Product Picture and S Parameter from 7 to 15 GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    EMI Shielding (includes Weatherproofing)
    10 items left


    • Frequency Range: 7G to 15 GHz
    • High Output IP3: +28 dBm
    • Low Noise Figure: typical 4.0 dB
    • 15dB Gain, +15dBm P1dB
    • Single DC Voltage: +5.5~12V
    • Operating Current: 45 mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant


    • Repeaters/DAS
    • Mobile Infrastructure
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Datasheet & S-Parameter

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png GBA7G15GR Datasheet
