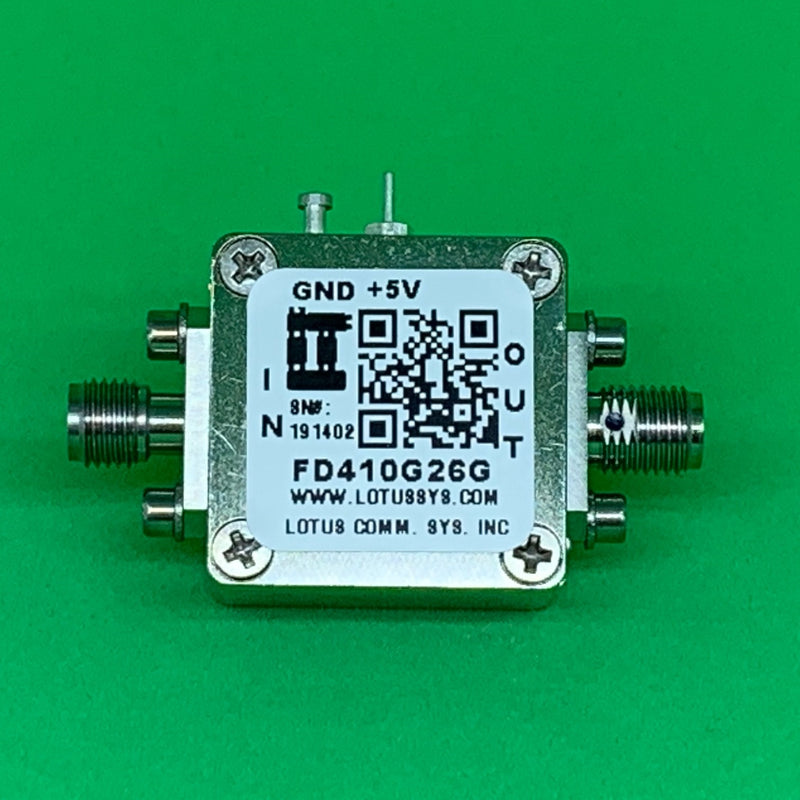

Frequency Divider/Prescaler Divide by 4 (10 to 26 GHz) FD410G26G

Part Number: FD410G26G is a low noise divide-by-4 active broadband frequency divider GaAs HBT technology.  This wideband divider operates with input frequency from 10 to 26 GHz and accepts very wide range of input power level from -15 to 10 dBm.  The divider exhibits a very low SSB Phase noise of -150 dBc/Hz at 100 kHz offset, making it ideal for use in high frequency PLL and LO applications.

The divider consumes only 96mA from single power supply of +5V. The input connector is 2.92mm Steel Connector and Output connector is SMA Steel Connector.

Enclosure is using RF Design Kit 6UDD2W6O5A2 with dimension 0.9375"x0.9375x0.47".

SKU#: AK20-020S
