  • Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss

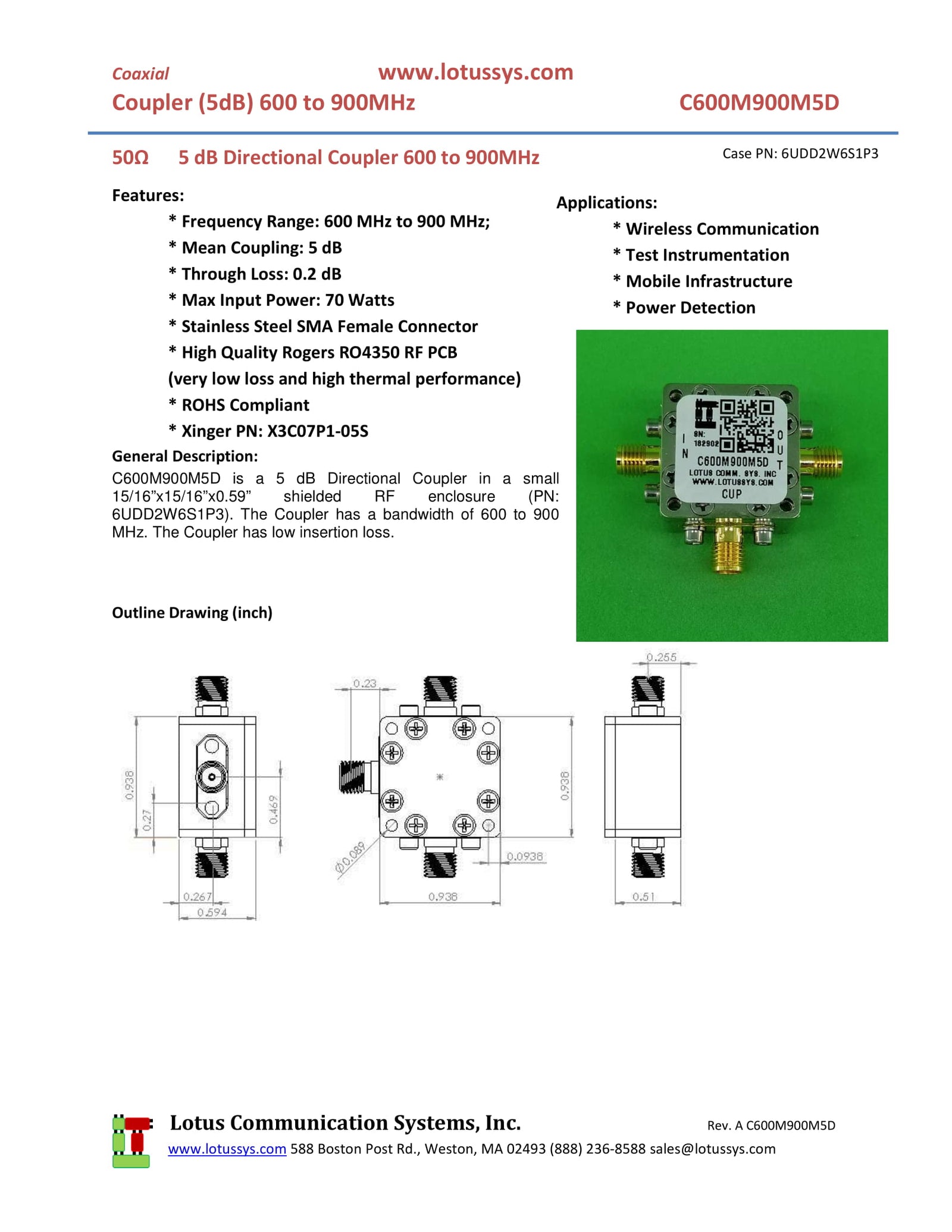

    C600M900M5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 600 to 900 MHz. The Coupler has low insertion loss.

    Features:
        * Frequency Range: 600 MHz to 900 MHz;
        * Mean Coupling: 5 dB
        * Through Loss: 0.2 dB
        * Maximum Input Power: 70 Watts
        * Stainless Steel SMA Female Connector
        * High Quality Rogers RO4350 RF PCB
        (very low loss and high thermal performance)
        * ROHS Compliant
        * Xinger PN: X3C07P1-05S

    Applications:
        * Wireless Communication
        * Test Instrumentation
        * Mobile Infrastructure
        * Power Detection

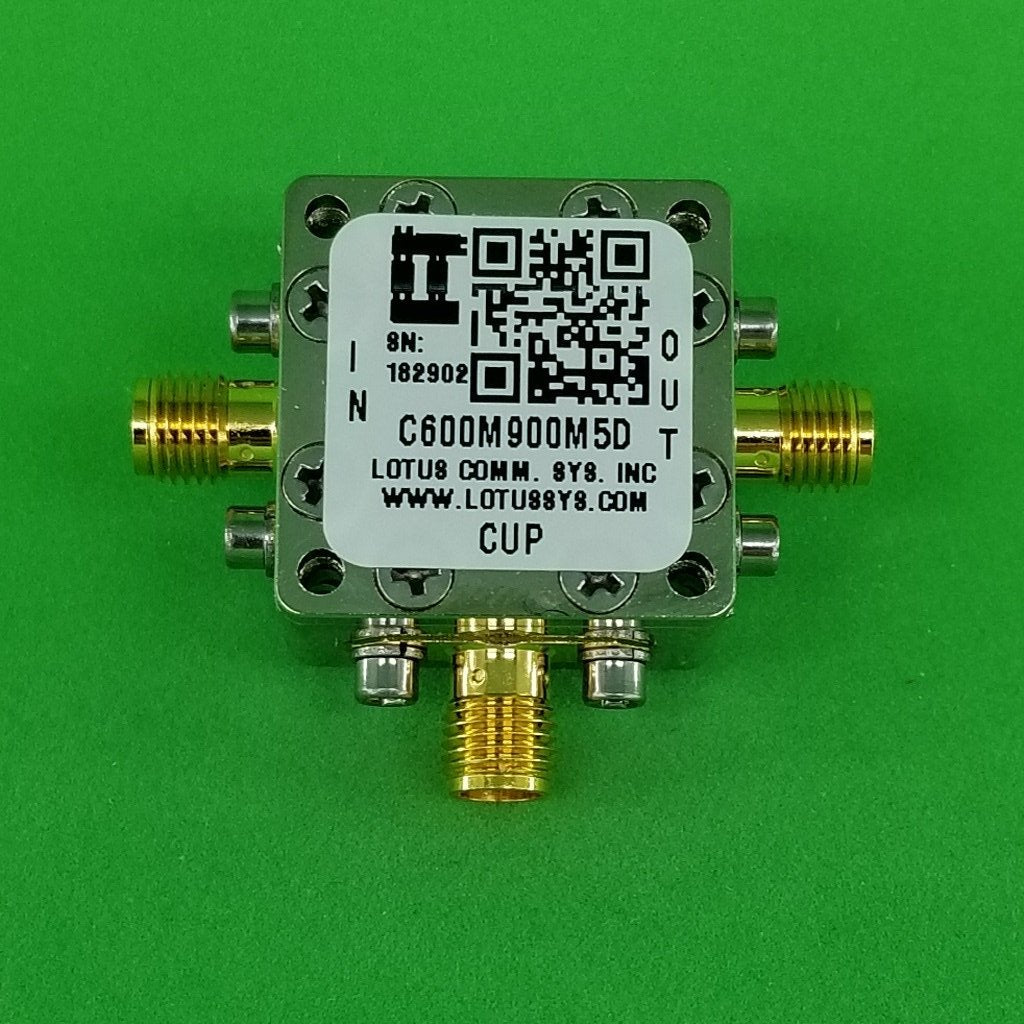

    This Directional Coupler includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
