AK20_002C

Directional Coupler 4.7 GHz to 5.9 GHz 20dB 2W Low Insertion Loss

2 items left

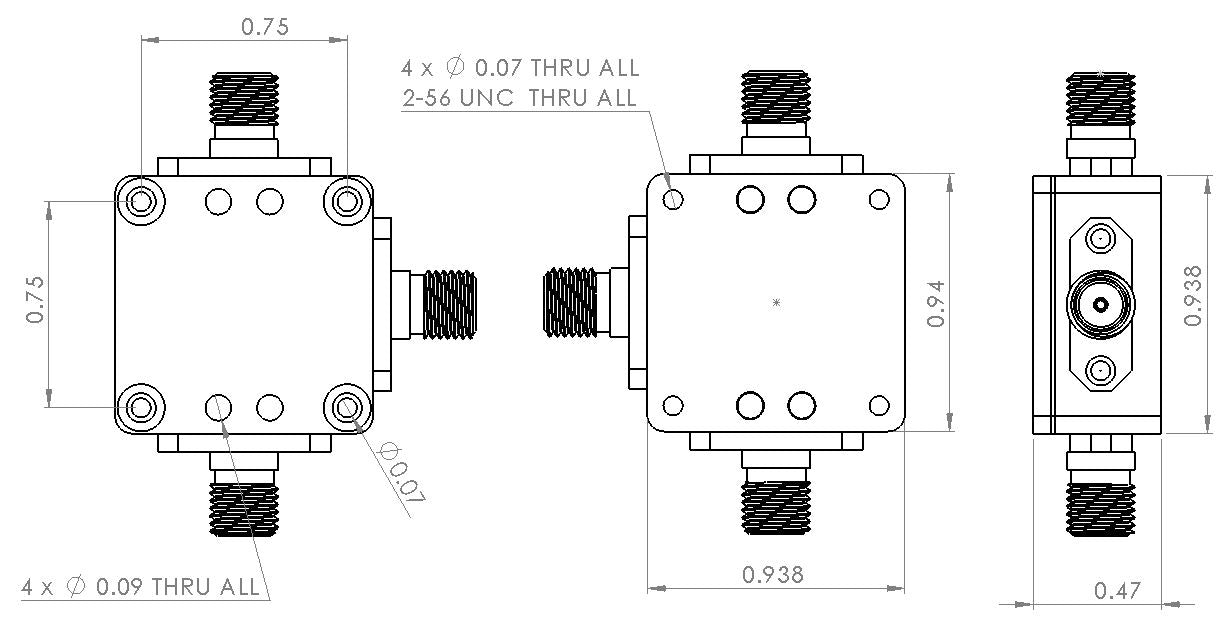

C4P7G5P9G20D is a 20 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 4700 to 5900 MHz. The Coupler has low insertion loss.

Features:
    * Frequency Range: 4700 MHz to 5900 MHz;
    * Mean Coupling: 20 dB
    * Through Loss: 0.6 dB
    * Maximum Input Power: 2 Watts
    * Stainless Steel SMA Female Connector
    * High Quality Rogers RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant
    * Xinger PN: DC4759J5020AHF

Applications:
    * Wireless Communication
    * Test Instrumentation
    * Mobile Infrastructure
    * Power Detection

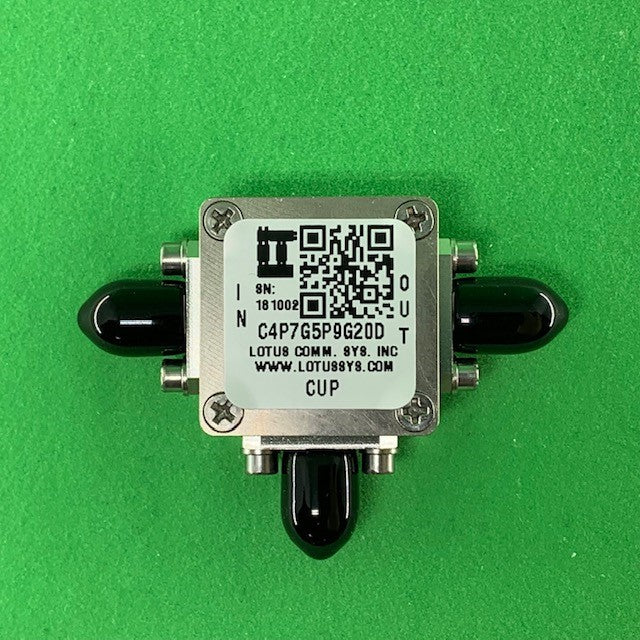

This Directional Coupler includes the RF Enclosure as shown in picture.

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
