Directional Coupler 3.3 GHz to 3.8 GHz 5dB 2W Low Insertion Loss
$ 98.00 USD

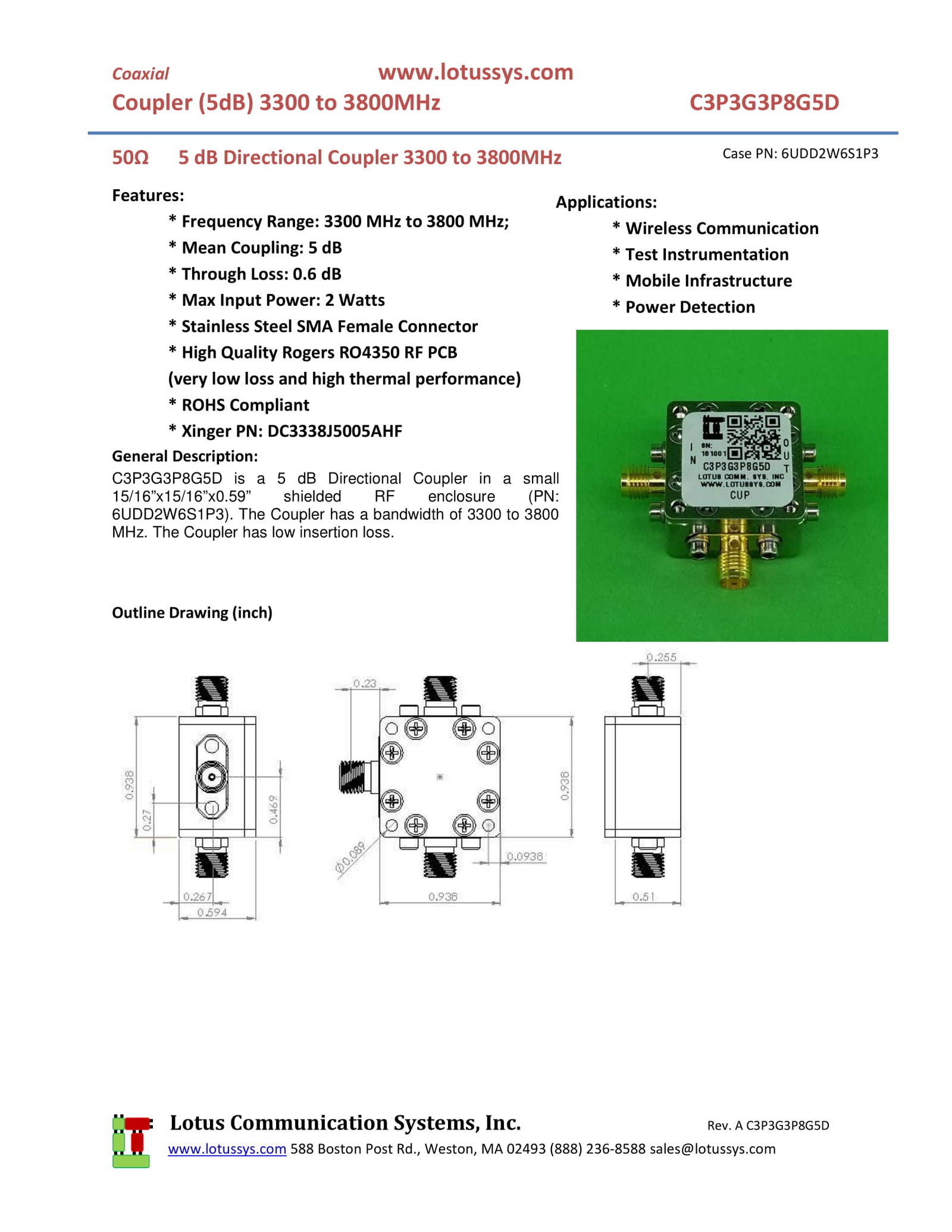

C3P3G3P8G5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 3300 to 3800 MHz. The Coupler has low insertion loss.
Features: * Frequency Range: 3300 MHz to 3800 MHz; * Mean Coupling: 5 dB * Through Loss: 0.6 dB * Maximum Input Power: 2 Watts * Stainless Steel SMA Female Connector * High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance) * ROHS Compliant * Xinger PN: DC3338J5005AHF
Applications: * Wireless Communication * Test Instrumentation * Mobile Infrastructure * Power Detection

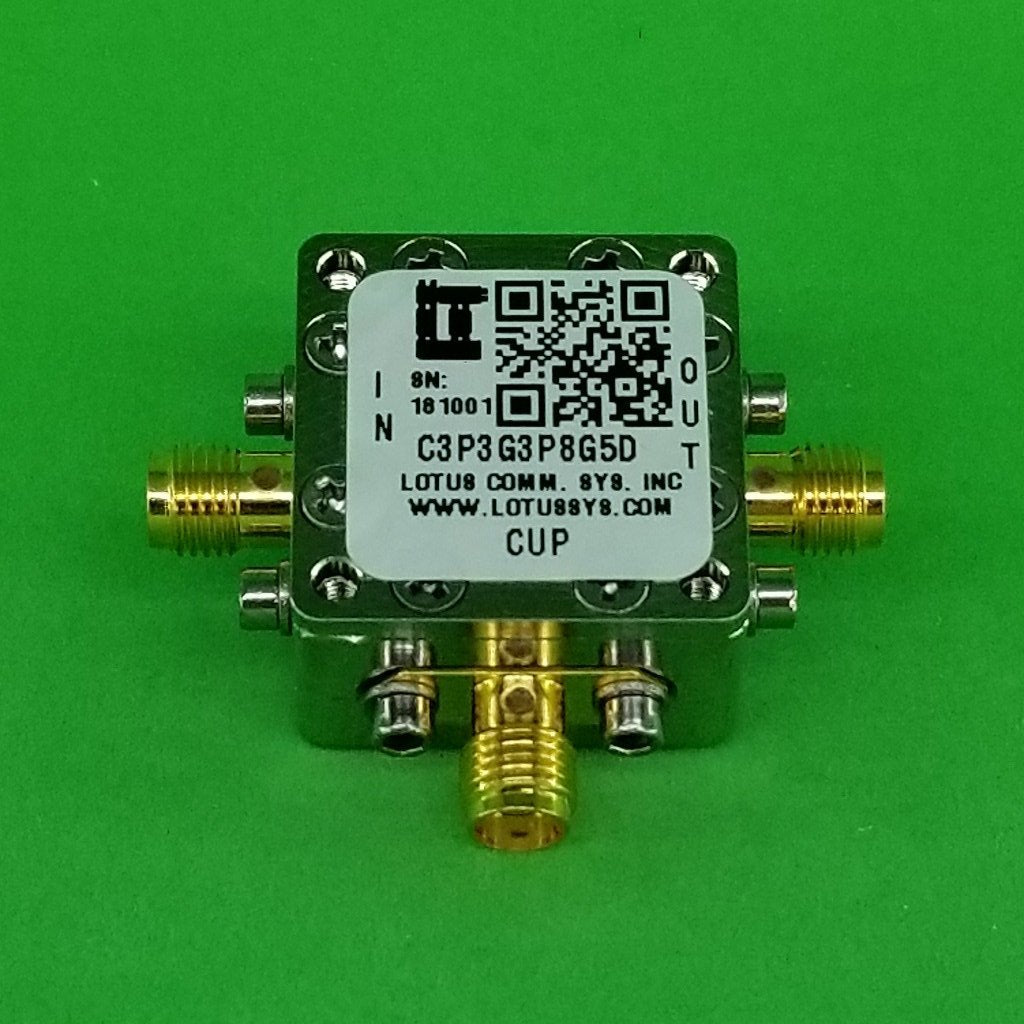

This Directional Coupler includes the RF Enclosure as shown in picture.
Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
