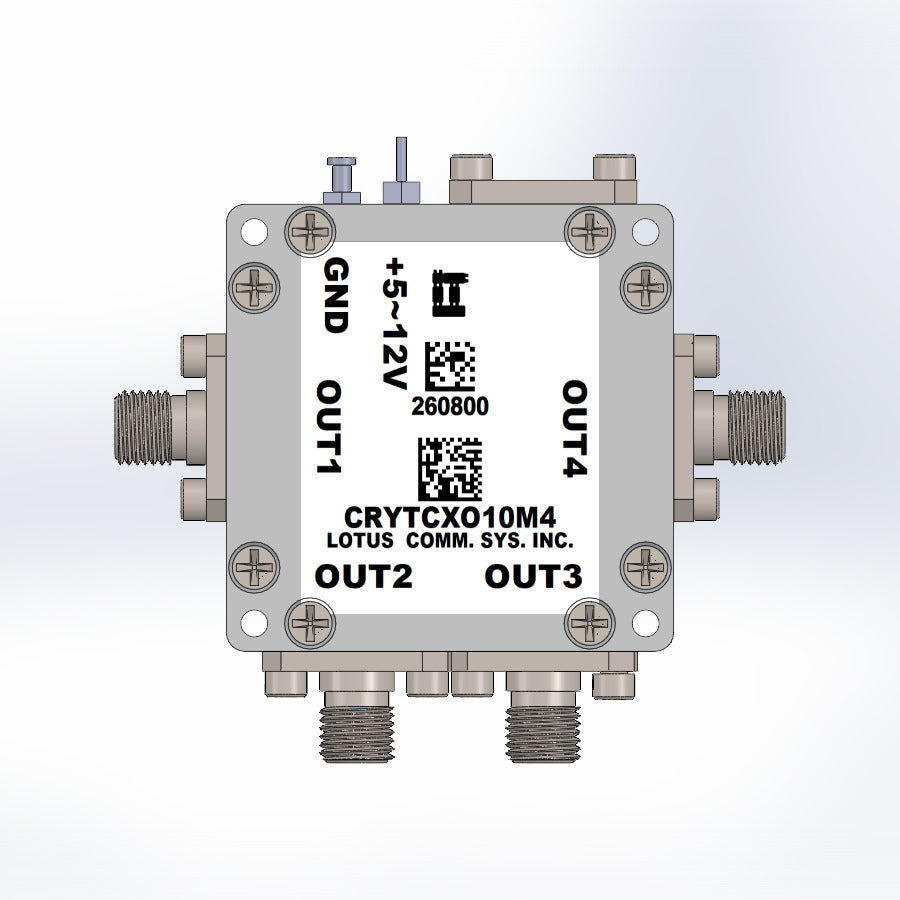

Clock Distribution 4 Outputs TCXO 10 MHz (0.28 ppm) (Wide Voltage +5~12V)
Clock Distribution 4 Outputs TCXO 10 MHz (0.28 ppm) (Wide Voltage +5~12V)
Clock Distribution 4 Outputs TCXO 10 MHz (0.28 ppm) (Wide Voltage +5~12V)
Clock Distribution 4 Outputs TCXO 10 MHz (0.28 ppm) (Wide Voltage +5~12V)

Clock Distribution 4 Outputs TCXO 10 MHz (0.28 ppm) (Wide Voltage +5~12V)

$ 458.00 USD

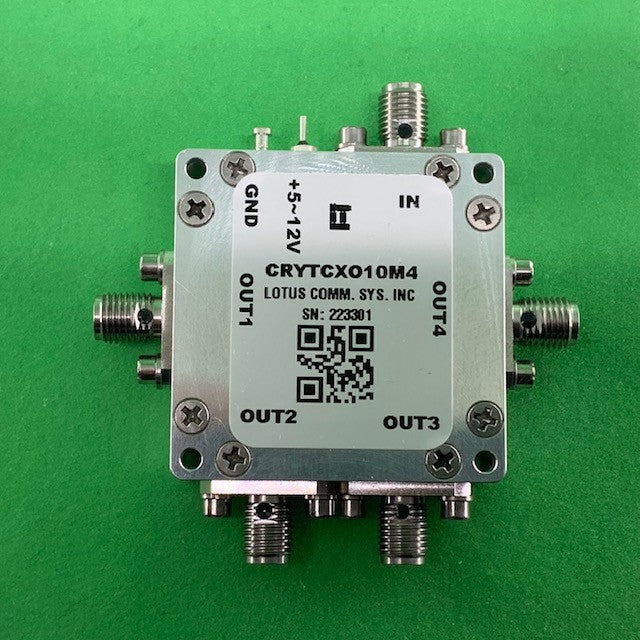

Part Number: CRYTCXO10M4 is a high-performance TCXO/LVCMOS clock fanout.  It can provide 4 outputs. If outputs are not used, terminate with 50Ohm load.  It has low RMS additive phase jitter (42fs typical).  The clock distribution module can operate from +5~12V voltage.

SKU#: AK20-016B.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: Clock Distribution/Fan Out


Features

  • Frequency Output: 10 MHz (4 Outputs)
  • Supply Voltage: +5~12 V
  • Low RMS additive phase Jitter (42fs typ.)
  • Frequency Stability: 0.28ppm over operational temperature
  • Phase Noise dBc/Hz: -155 @ 10 kHz offset
  • Aging: +/-1ppm max per year, +/-3ppm over 10 years
  • ROHS Compliant

Applications

  • Test Instrumentation
  • General Purpose Wireless
  • Clock Distribution

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngCRYTCXO10M4 Datasheet
