Low Noise Amplifier 0.8dB NF 50M~4GHz 36dB Gain 22dBm P1dB SMA - 2 Stage High Gain

Low Noise Amplifier 0.8dB NF 50M~4GHz 36dB Gain 22dBm P1dB SMA - 2 Stage High Gain

$ 208.00 USD

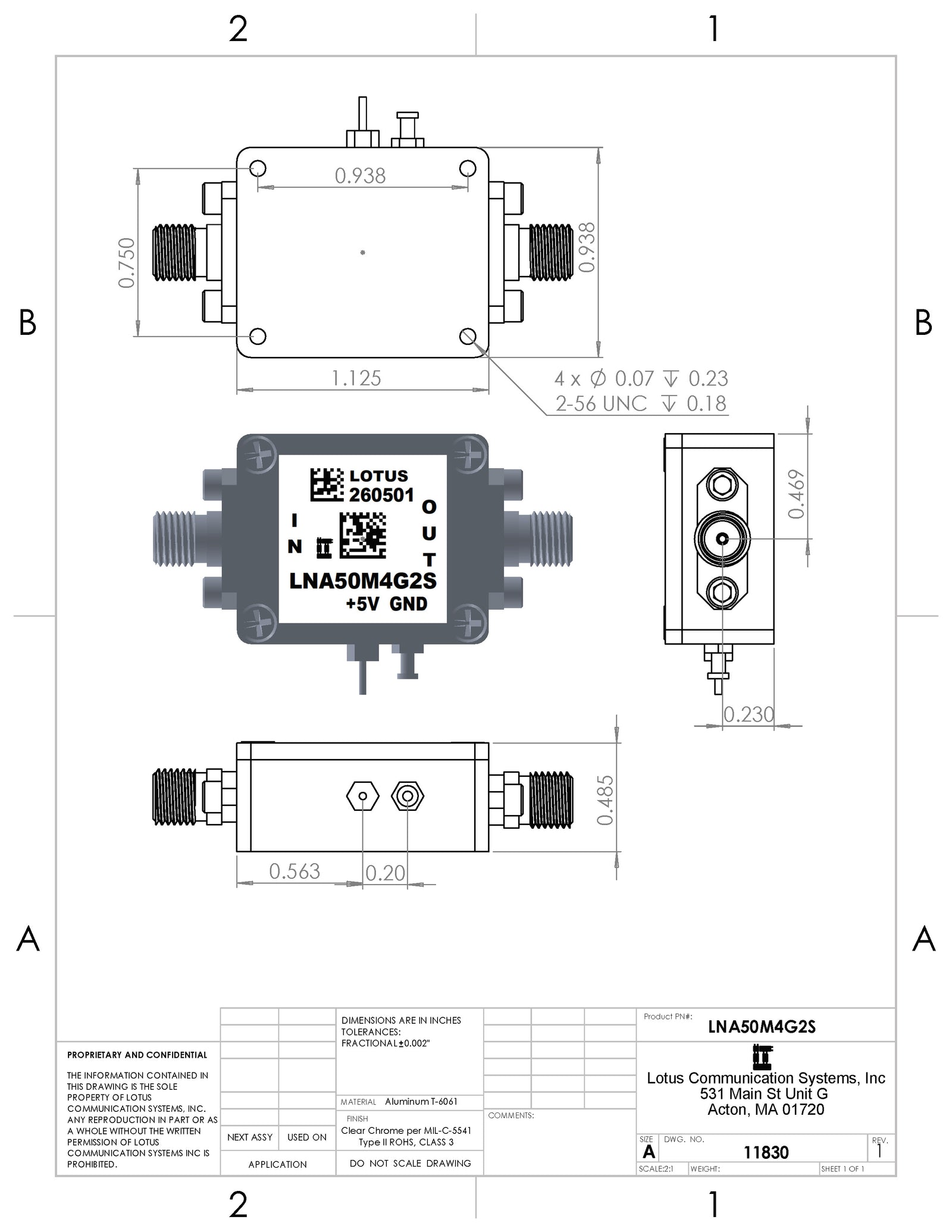

Part Number: LNA50M4G2S (SKU#: AK20-019P) is a high-linearity, two stage low noise amplifier designed for operation from 50MHz to 4GHz in a small 1-1/8”x15/16”x0.38” shielded RF enclosure. At 900 MHz, the amplifier typically provides 36 dB gain, +33 dBm OIP3 at a 92 mA bias setting, and 0.8 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

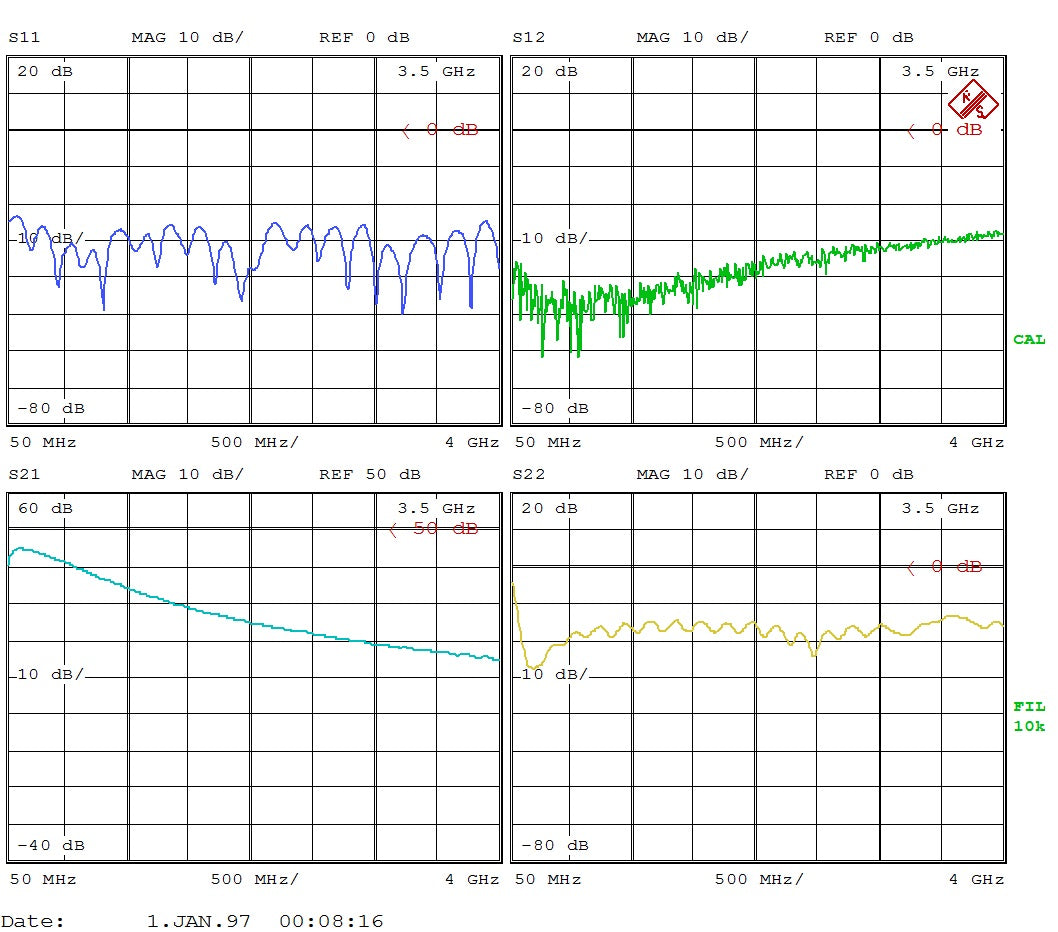

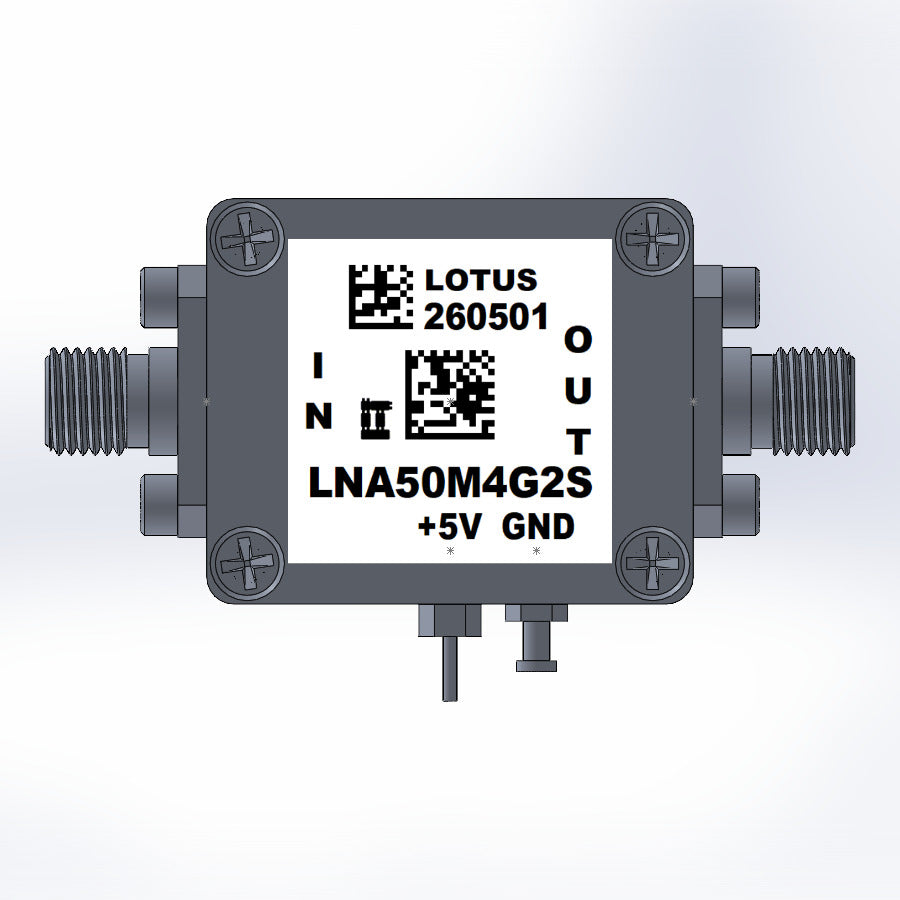

Listed pictures include Product Picture and S Parameter from 50MHz to 4GHz. This LNA includes the RF Enclosure as shown in picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.

Collections: Low Noise Amplifier
