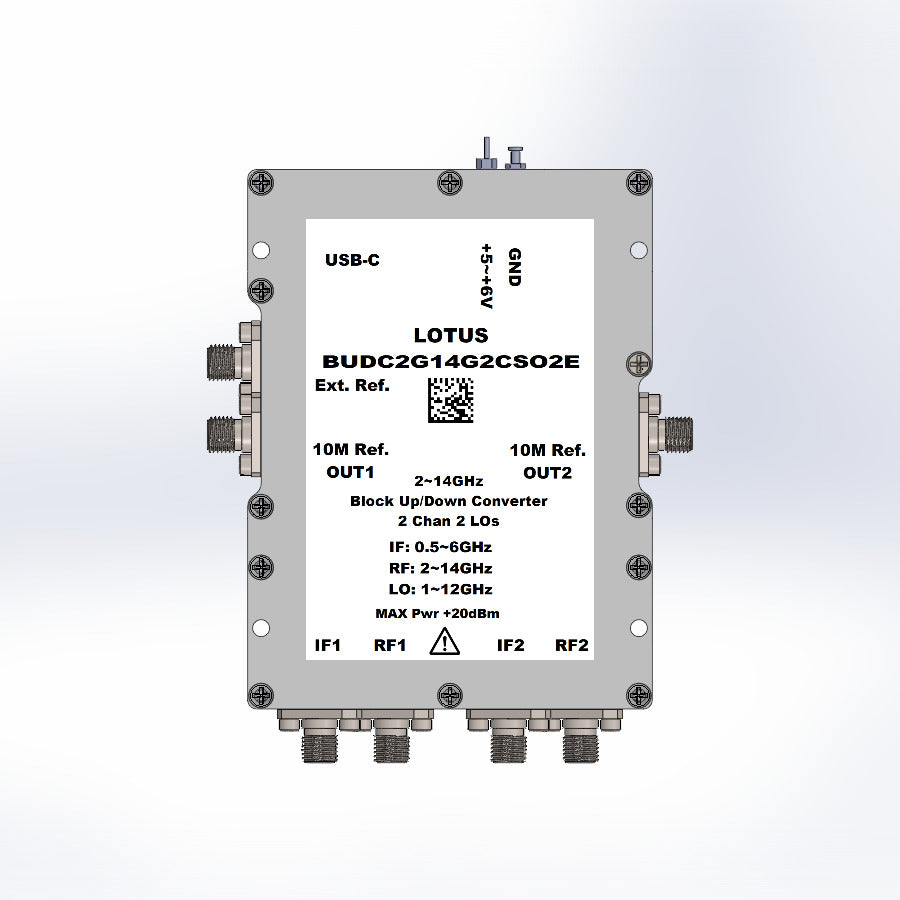

2 CH Phase Coherent BUDC 2G~14GHz 2 LOs Ext. Ref.
$ 3,598.00 USD
Part Number: BUDC2G14G2CSO2E is a 2 Channel Phase Coherent 2G~14 GHz block up/down converter that can be used for up conversion or down conversion. RF frequency range is 2GHz to 14GHz and IF frequency range is 500MHz to 6GHz. Two independent low phase noise LOs support LO frequencies from 1GHz to 12GHz. Two LOs can be programmed separately. It also has two 10MHz Ref. output to synchronize other instruments. The LO freq. is synchronized to external 10MHz Reference.

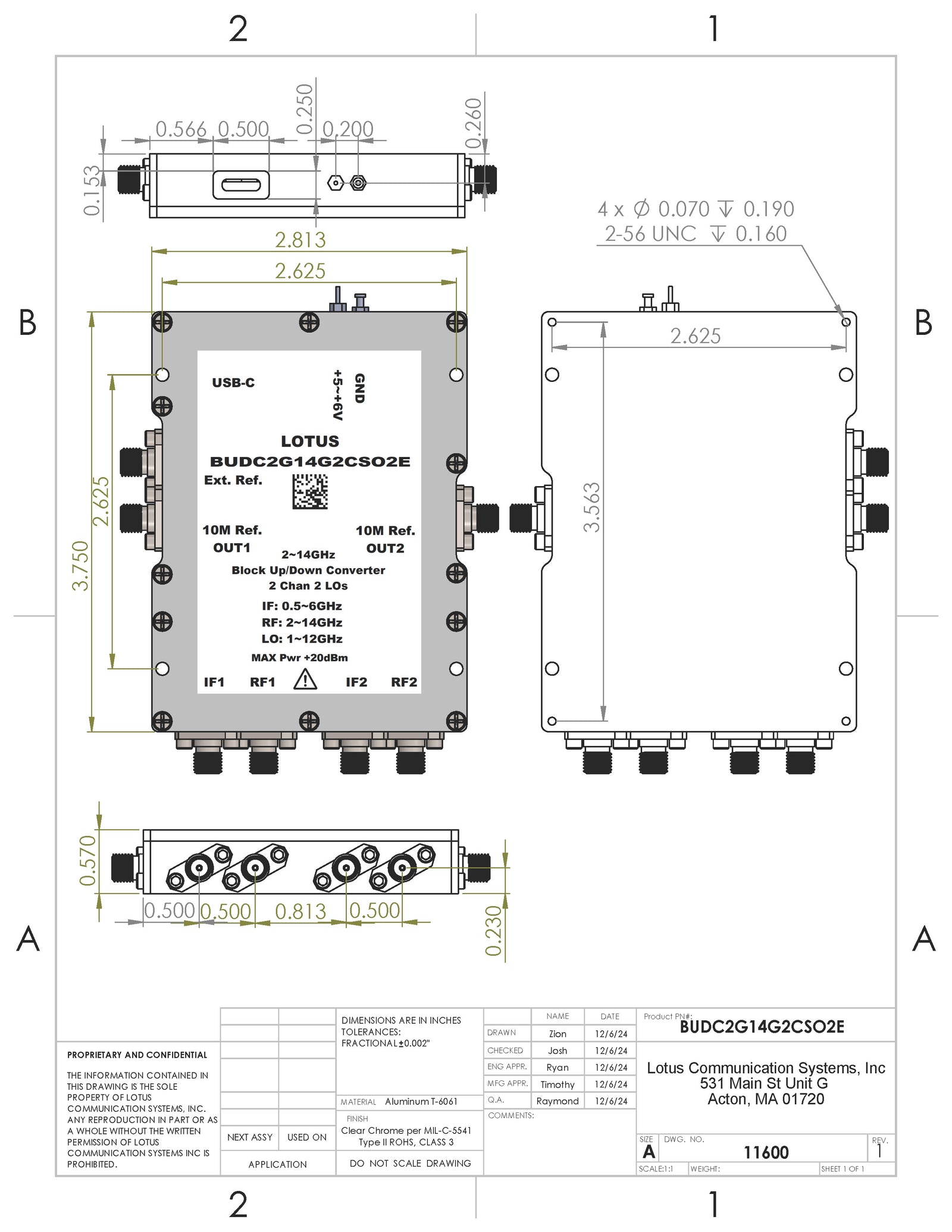

It has 8.0dB conversion loss at 5.8GHz with low LO-RF leakage <30dBm. It can be powered either by USB-C or +5~6V terminal with 390mA current draw. It has dimension of 2.813x3.75x0.57.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Up-conversion or Down-conversion
- 2 Channel Phase Coherent (Share same 10MHz Int. Ref. )
- RF Frequency 2GHz to 14 GHz
- IF Frequency 500MHz to 6 GHz
- External 10MHz Ref.
- Integrated LO (no External Reference/LO needed)
- Software Programmable 2 LO Freq. (1G~12GHz)
- 8.0dB Conversion Loss at 5.8GHz
- Low LO‐RF Leakage: <‐30dBm
- Power by USB‐C or +5~6V Terminal/600mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Test Instrumentation
- Block Up/Down Conversion
- Wireless and Optical Communication
Resources (PDF Datasheet)
BUDC2G14G2CSO2E Datasheet
