RF Enclosure Kit for 0.062" PCB (size 0.8"x0.99") 75 Ohm N 2 Active Power Input

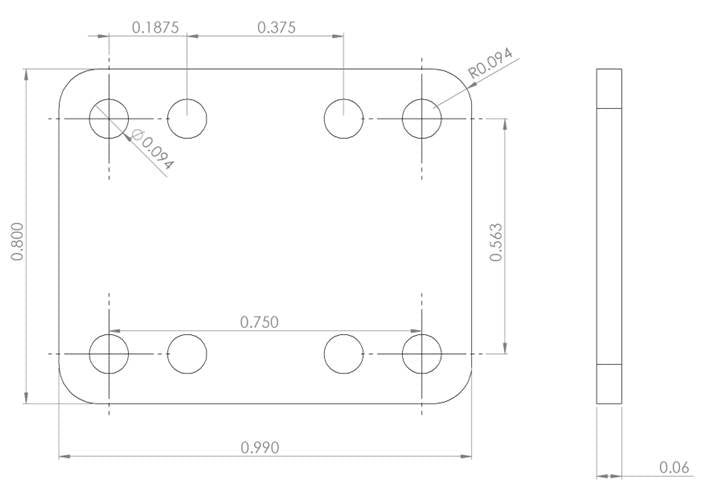

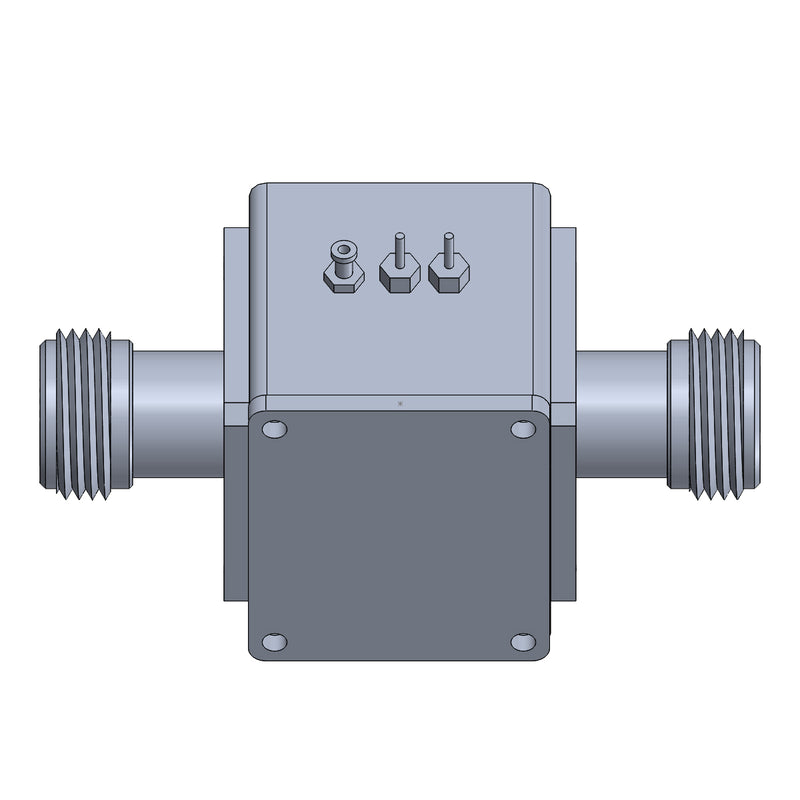

RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350) or FR4 0.80"x0.99"x0.062"(or 1.6mm). Part Number: 6UEX6W5Z6A3.

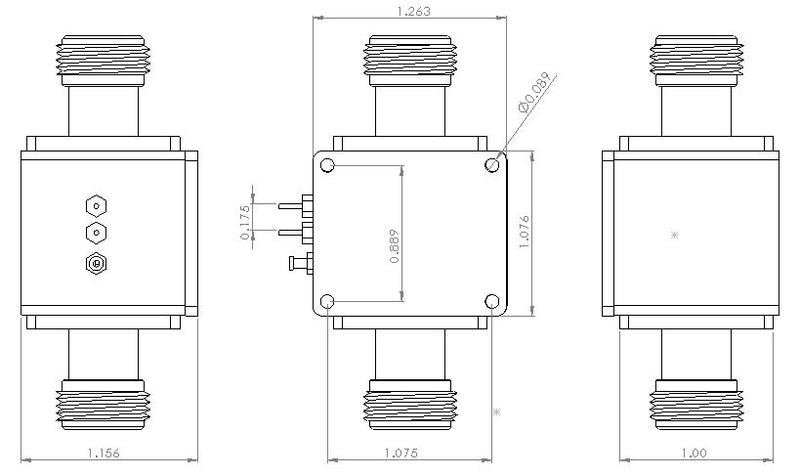

RF Housing Size: 1.075"x1.263". Housing height: 1". The PCB mounting hole spacing is 0.5625" and 0.75" respectively. PCB Inside Clearance to Enclosure Cover is 0.5". The EMI Feedthrough for Power is on the center of PCB with pin size 0.032". This Enclosure is ideal to hold Active PCB circuit (e.g., LNA, Frequency Conversion Circuits etc.) with two power inputs.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

RF Kit include (PCB is not included):

• All CNC Machined Housing and Cover, 1 ea
• N Type 4-Hole Flange Jack Receptacle Connector, 0.050" Pin, 2 ea.
• N Type Connector PN#: 23_N-75-0-1/133_NE
• EMI Feedthrough Cap #4-40, 100V/10A, 2 ea
• Ground Solder Terminal #4-40, 1 ea
• #4-40x3/16 SHCS, 8 for N Connector
• #4 Washer, 8 for N Connector
• 2-56x5/32 SHCS, 4 for PCB
• 2-56x3/16 Flat Head Screw (for Cover), 4 ea
